Home › Mitsubishi › 2019 › Eclipse Cross SP › Repair and Diagnosis › Body & Frame › Mirrors › Interior › Instrument Center Panel › Removal And Installation › Notes

Removal And Installation: Notes

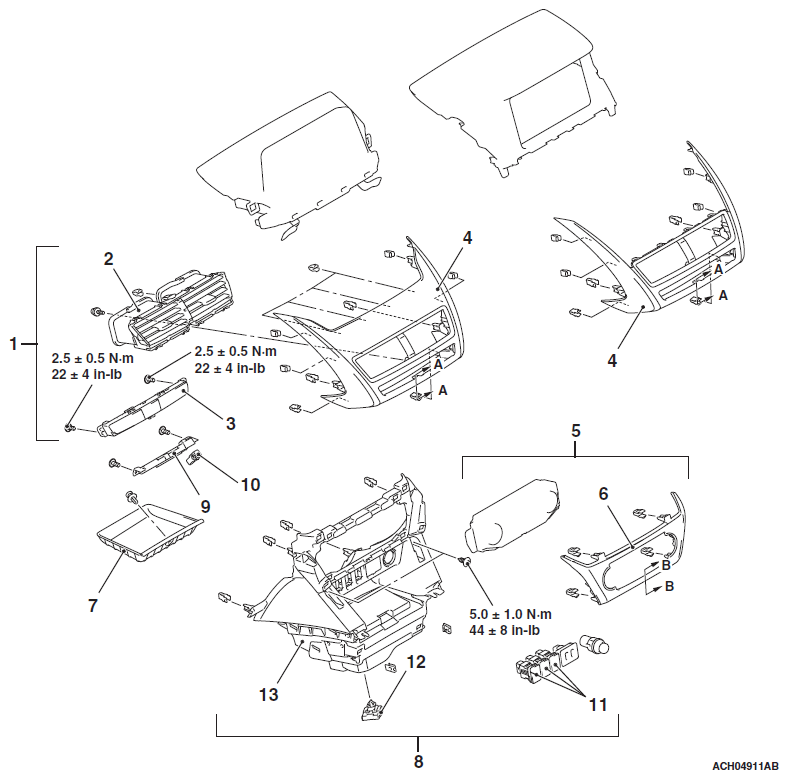

Fig 1: Removing/Installing Instrument Center Panel Components With Torque Specification
G12148565Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

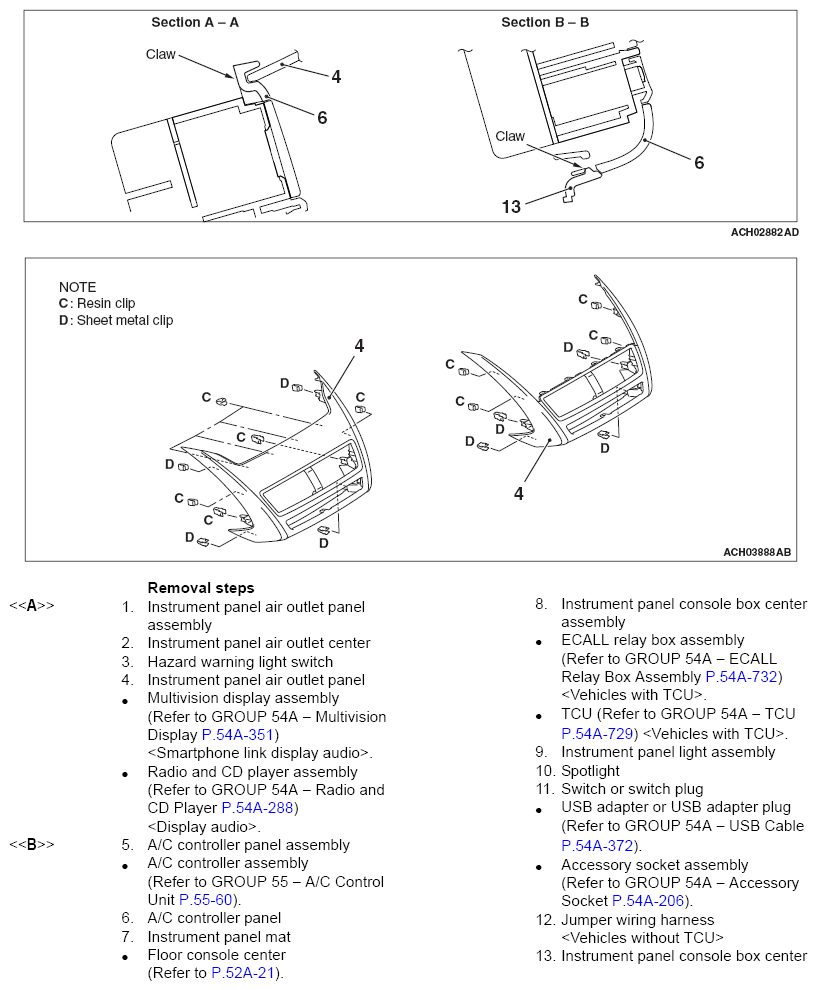

G12649805Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
