Notes

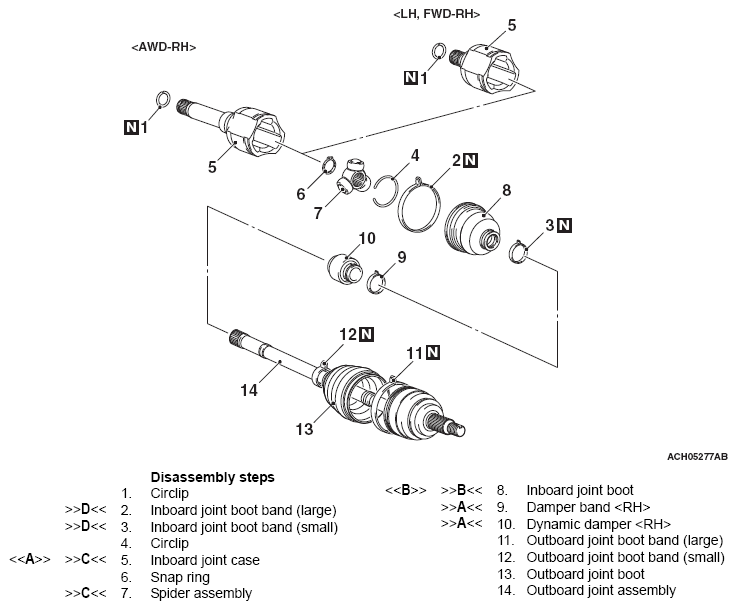

Disassembly And Reassembly: Notes
CAUTION:
As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
