Engine And Transaxle
Engine And Transaxle

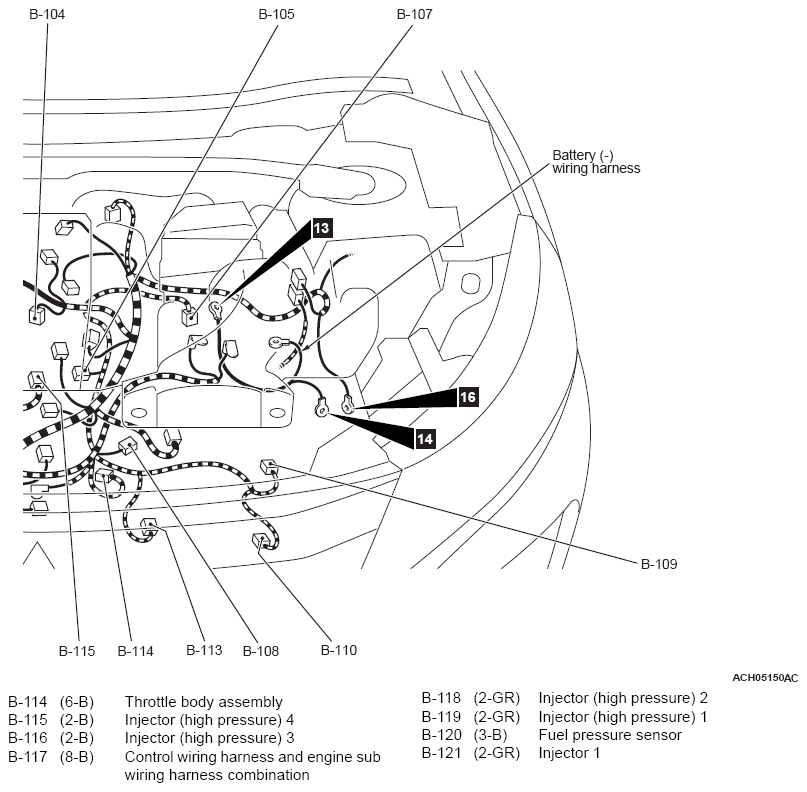

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

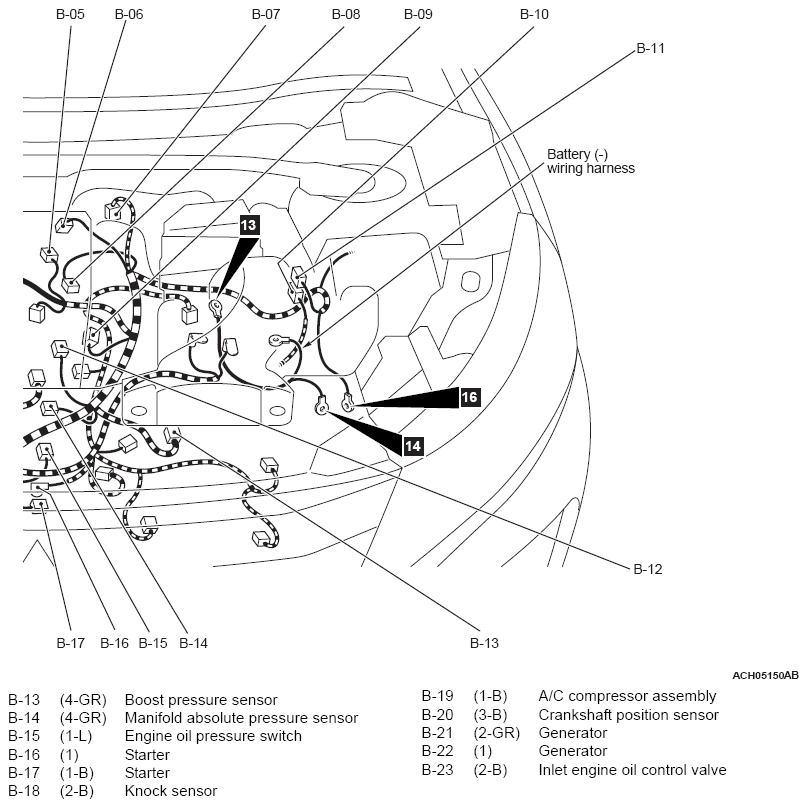

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

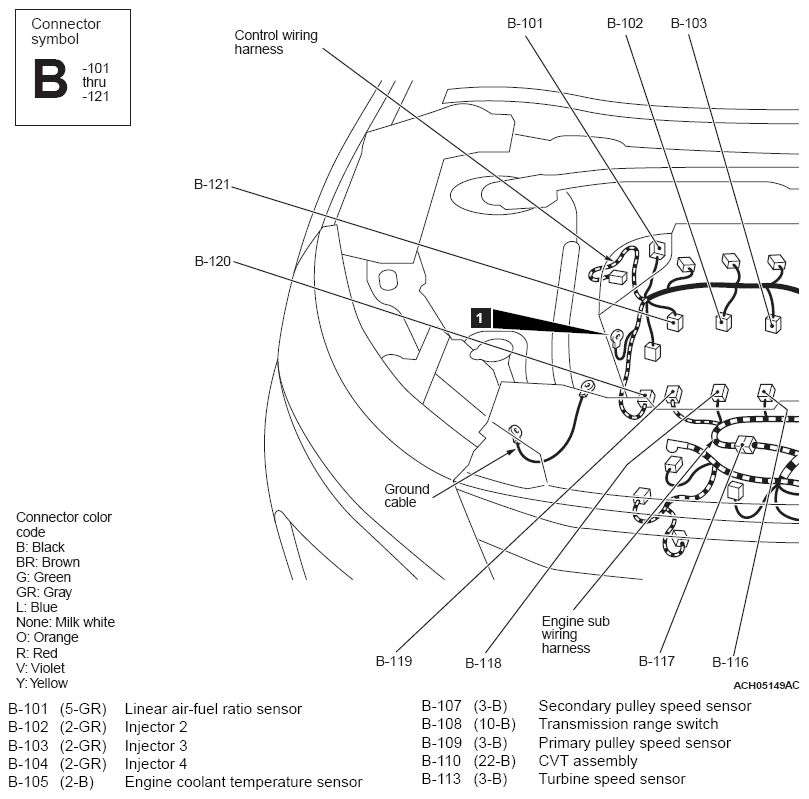

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

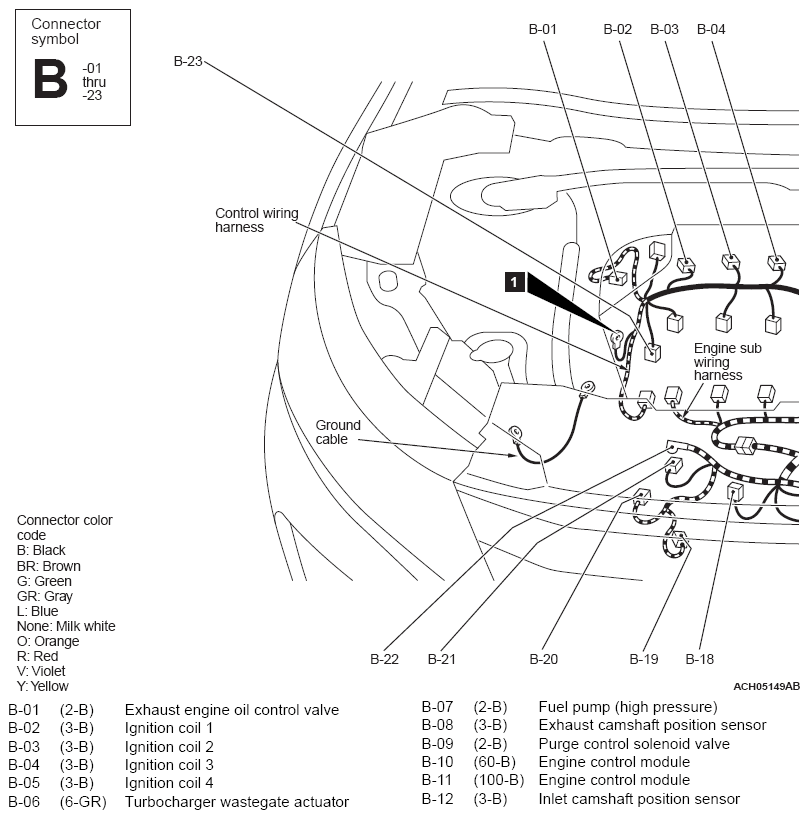

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
