Configuration Diagrams: Liftgate

CAUTION: Aluminum wires are partially used for the liftgate wiring harness.

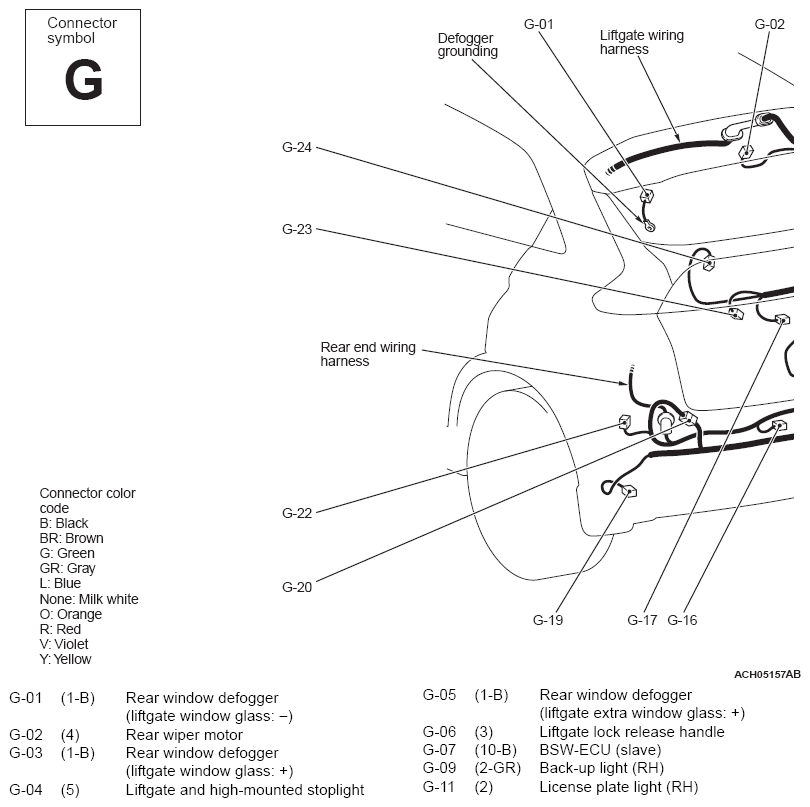

G12650969Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

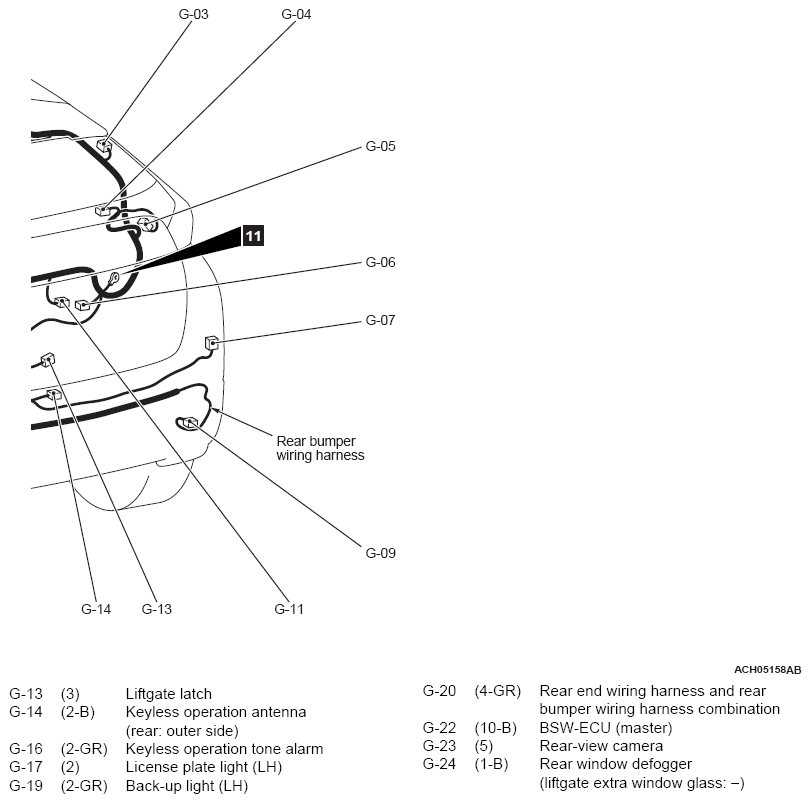

G12650970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
