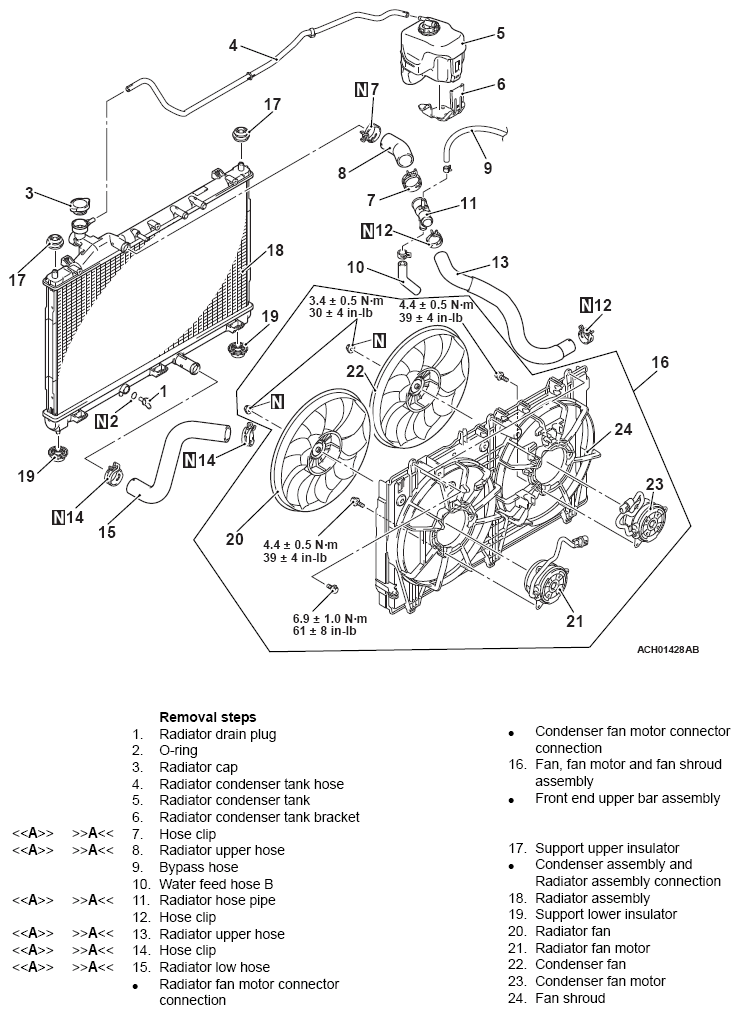

Removal And Installation: Notes
Pre-removal and Post-installation Operation
- Front under cover panel and front extension under cover panel Removal and Installation
(Refer to UNDER COVER ).
- Engine coolant Draining and Refilling (Refer to RADIATOR CAP OPENING PRESSURE CHECK ).
- Intake duct and air cleaner assembly Removal and Installation (Refer to AIR CLEANER ).
- Headlight support upper panel cover Removal and Installation (Refer to REMOVAL AND INSTALLATION )
