Removal And Installation: Notes

Pre-removal and post-installation operation

Engine Room Under Cover Front A, B Removal and Installation (Refer to UNDER COVER ).

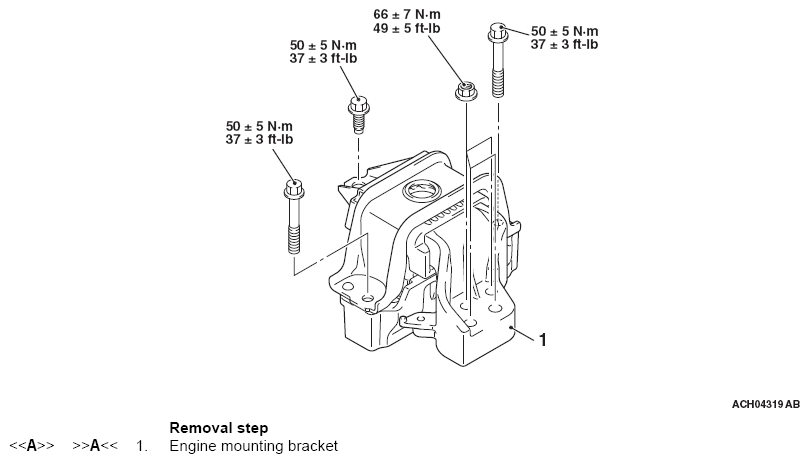

Fig 1: Removing/Installing Engine Mounting With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
