Removal And Installation: Notes

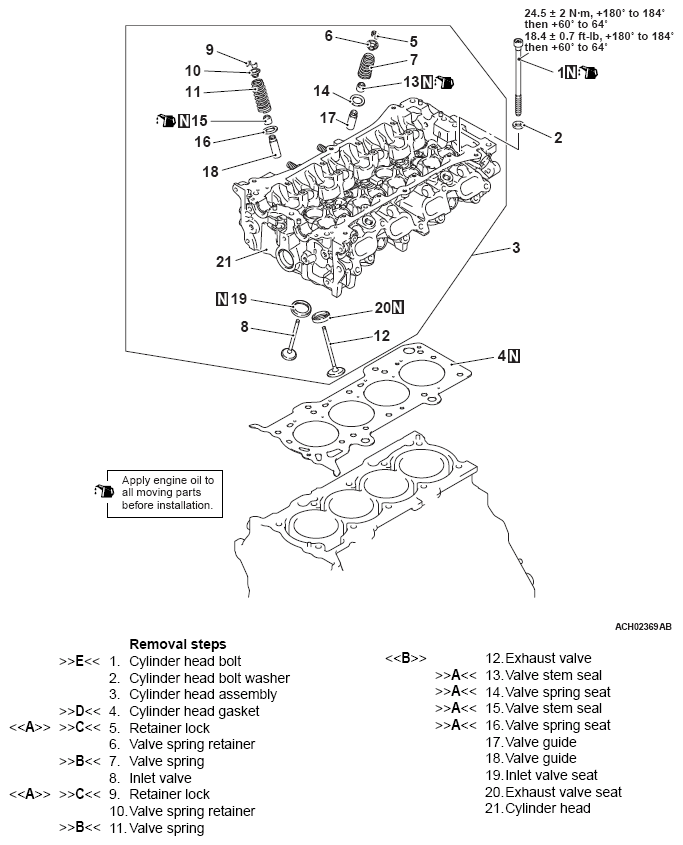

Fig 1: Removing/Installing Cylinder Head And Valves Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998735: Valve spring compressor
• MB992089: Retainer holder C
• MB992922: Valve stem seal installer adjustable
• MB991614: Angle gauge
