Removal And Installation

Pre-removal and Post-installation Operation

• Engine Cover Removal and Installation

  (Refer to Engine Cover Assembly ).

• Charge air cooler Outlet Air Pipe A Removal and Installation (Refer to CHARGE AIR COOLER ).
• Vacuum pipe Removal and Installation

  (Refer to TURBOCHARGER ASSEMBLY ).

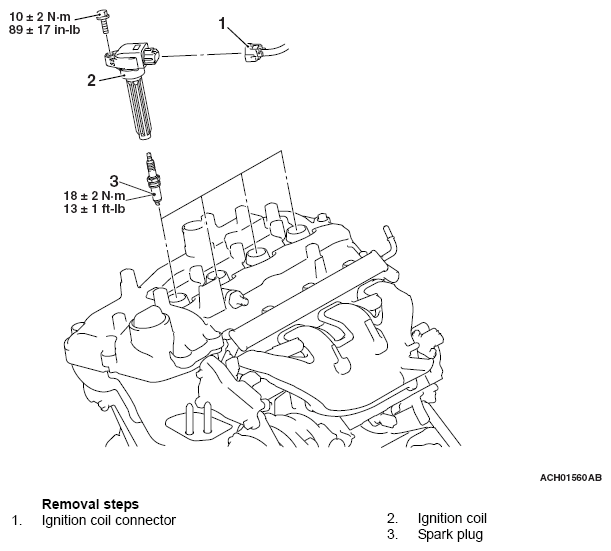

Fig 1: Removing/Installing Ignition Coil Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
