Multi Around Monitor

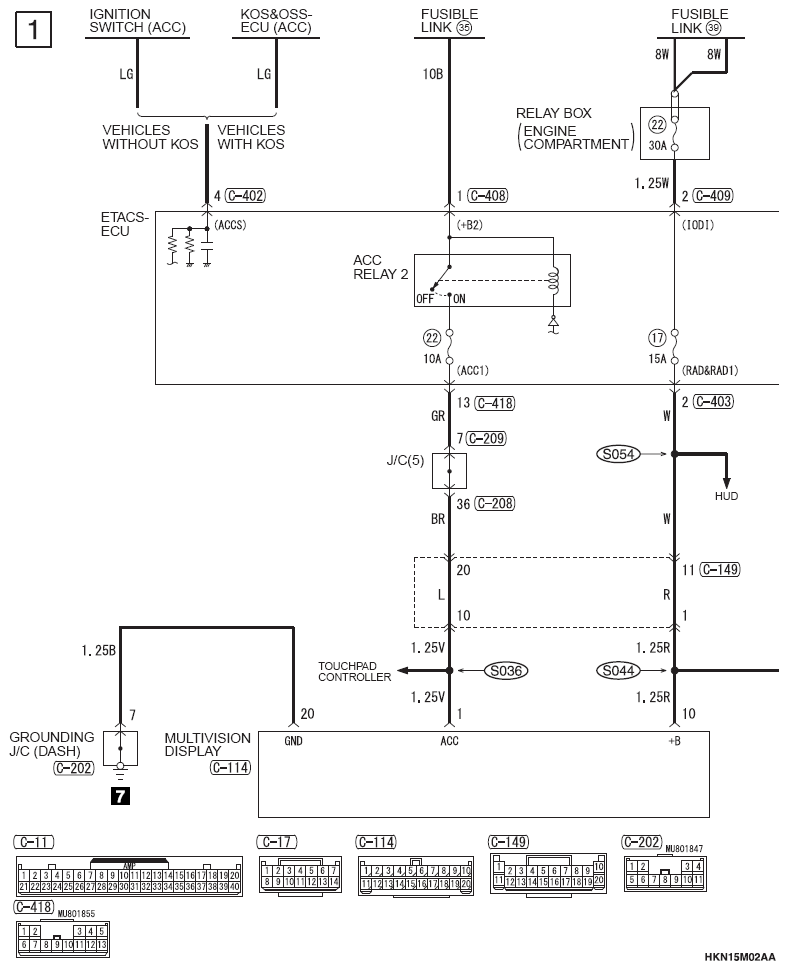

G12651588Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

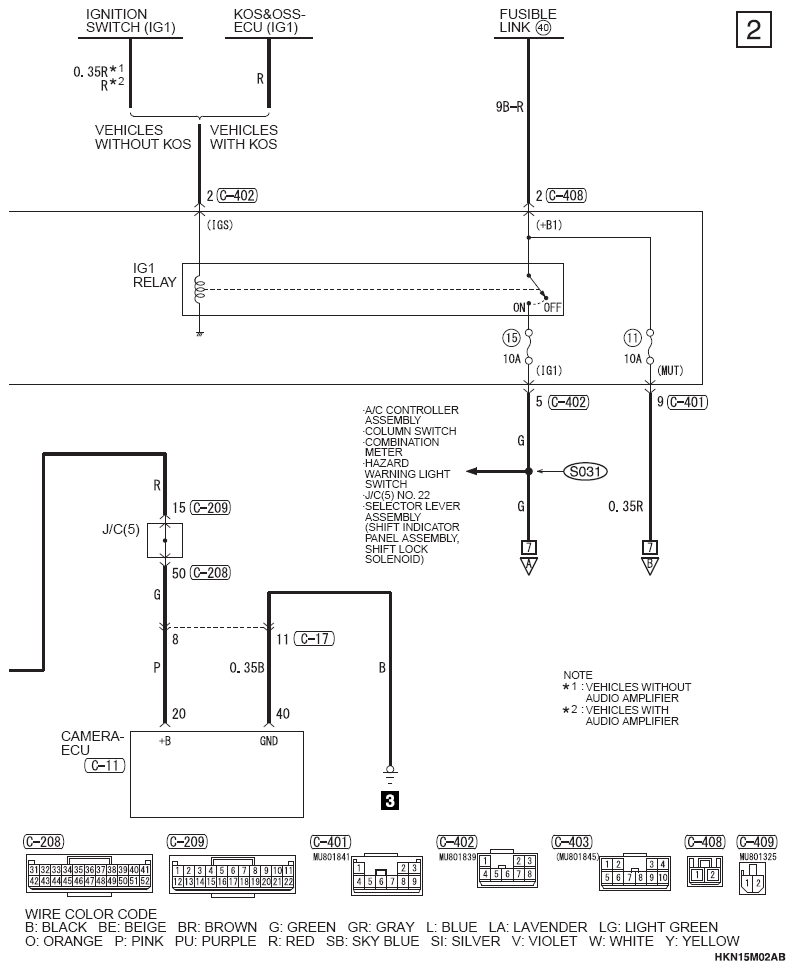

G12651589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

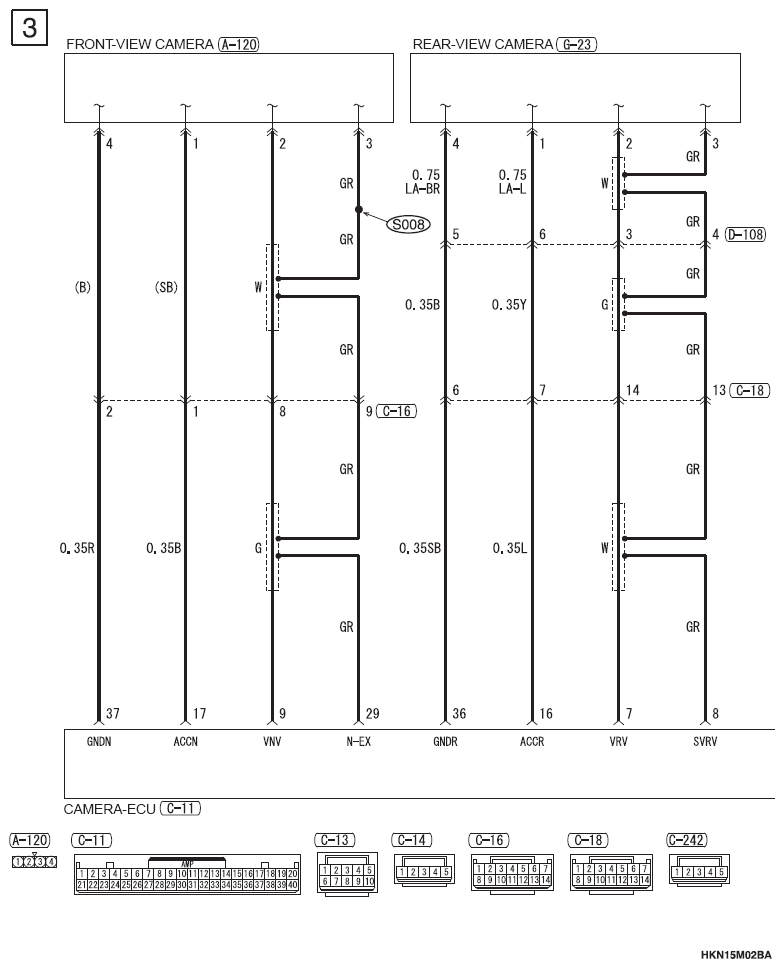

G12651590Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

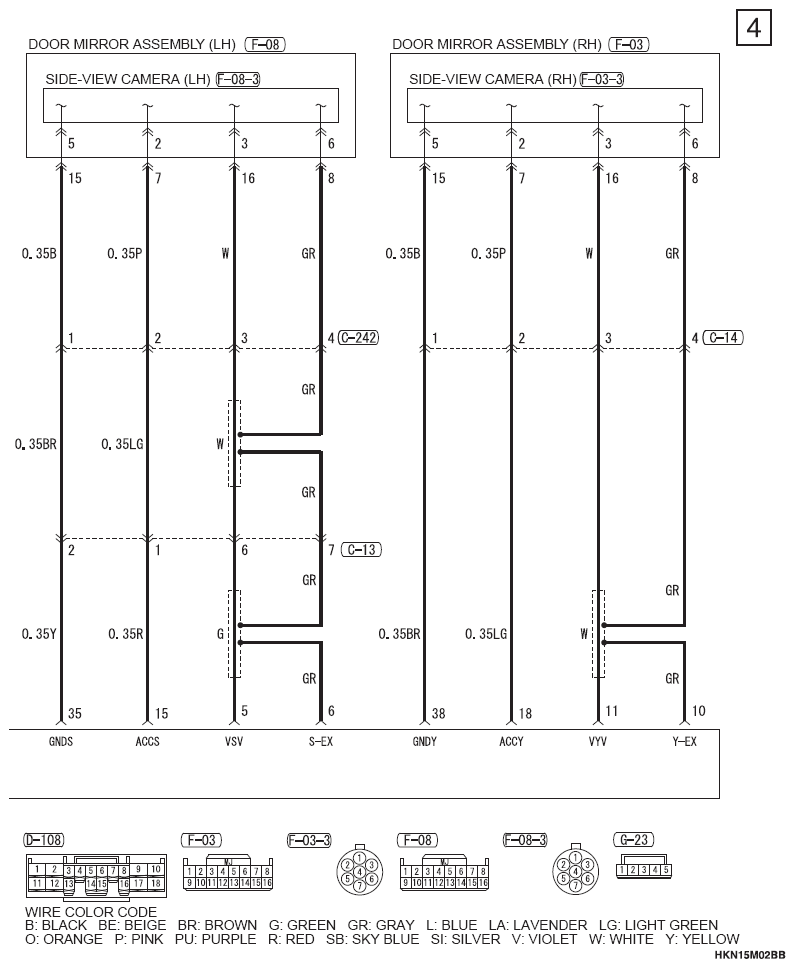

G12651591Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

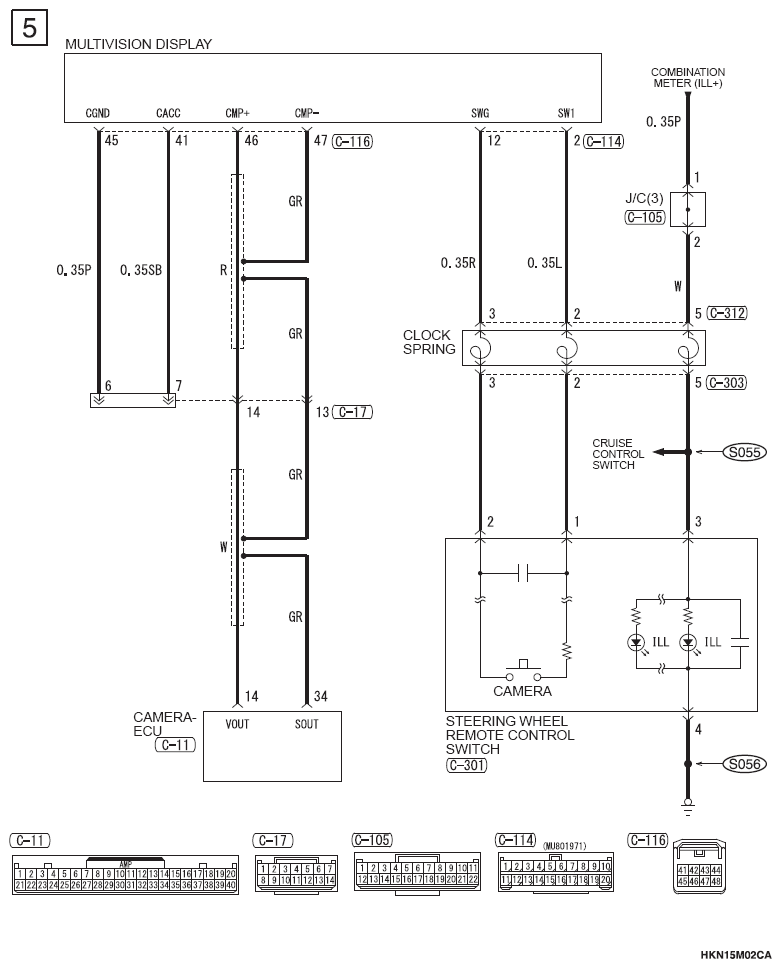

G12651592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

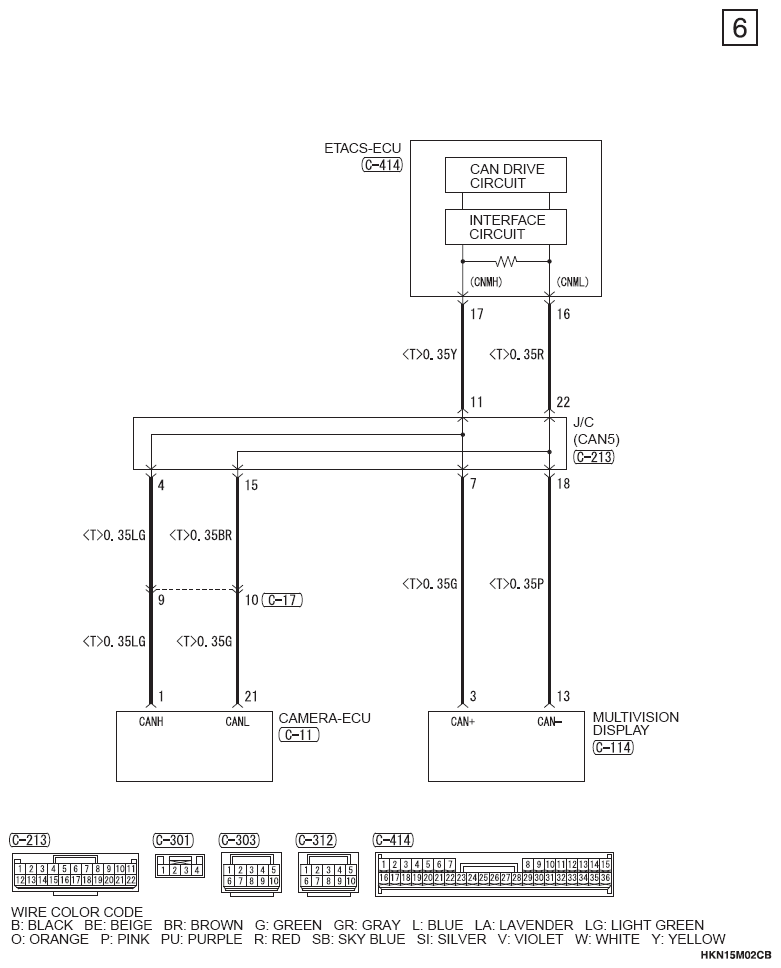

G12651593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

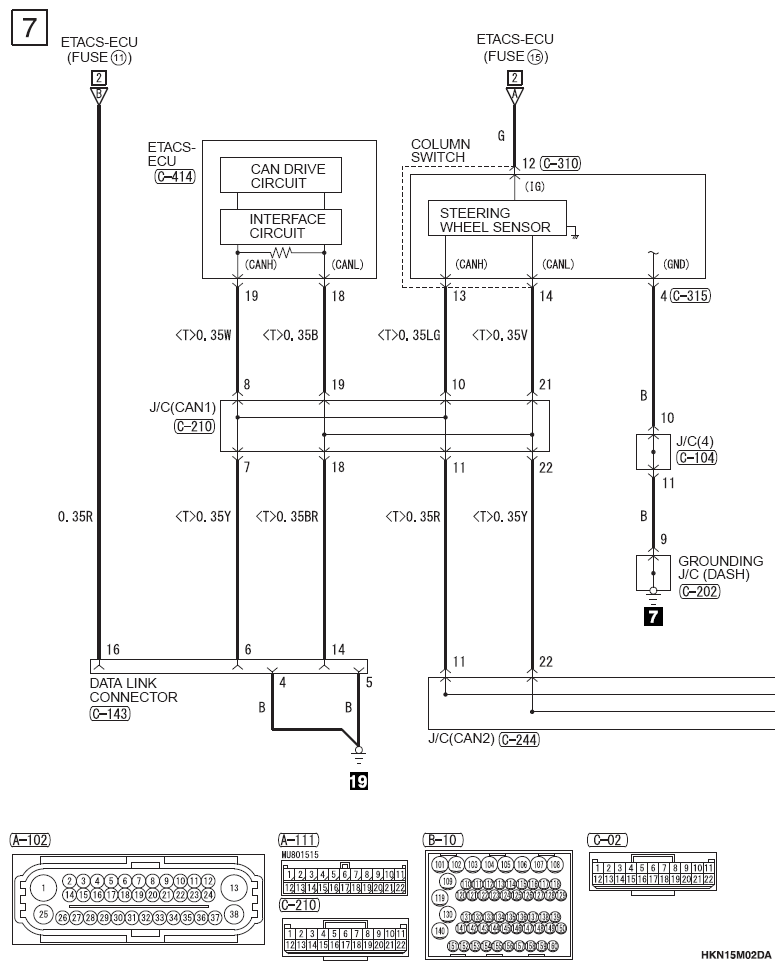

G12651594Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

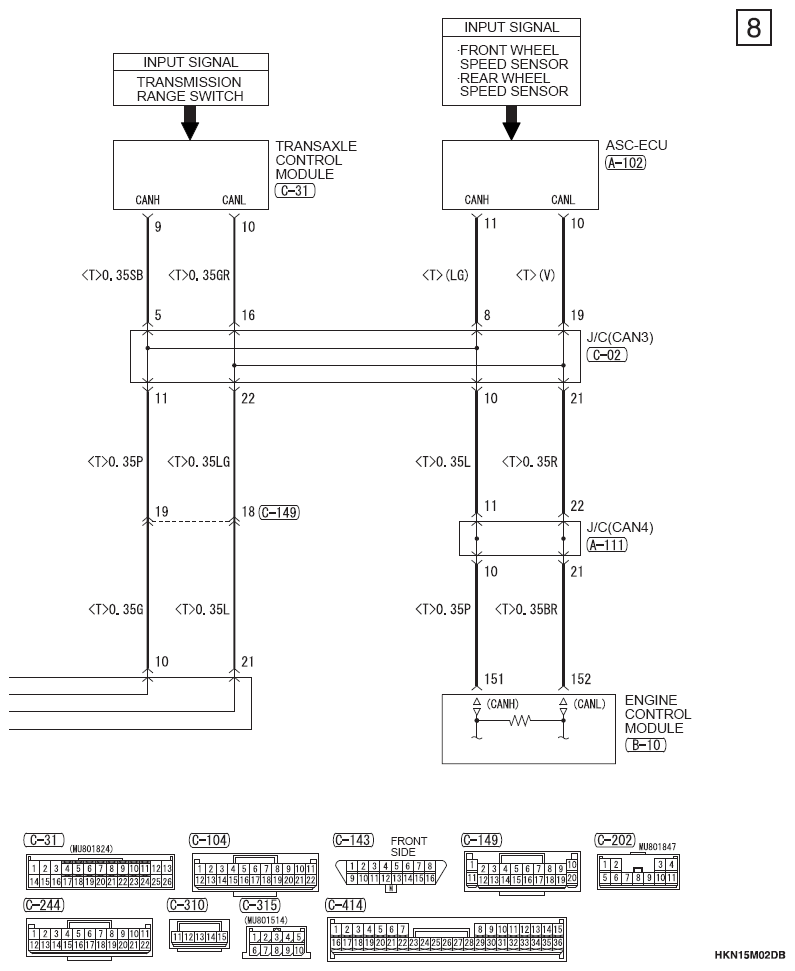

G12651595Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

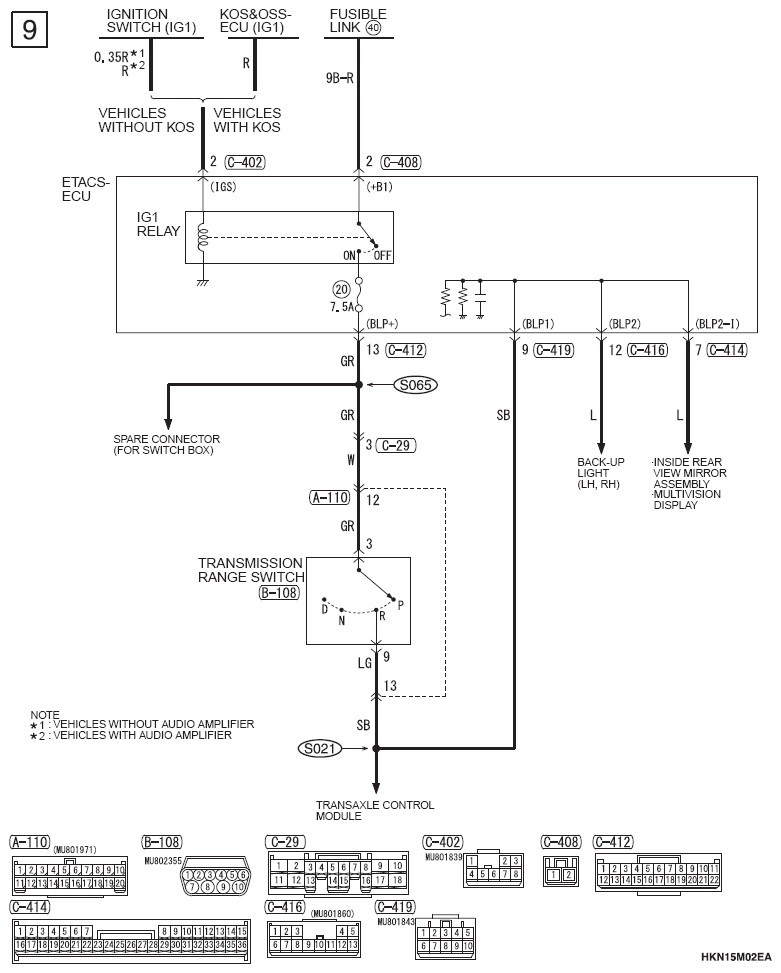

G12651596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
