FixVault
Home
›
Mitsubishi
›
2019
›
Eclipse Cross SP
›
Repair and Diagnosis
›
Engine Performance
›
Wiring Diagrams
›
Circuit Diagrams
›

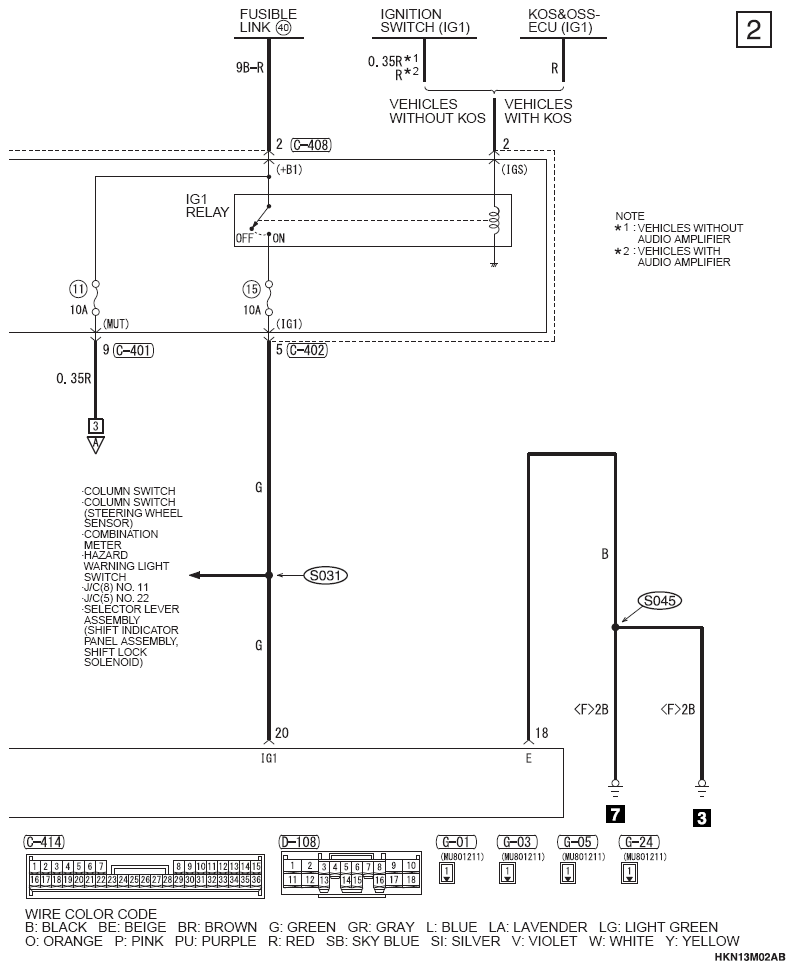

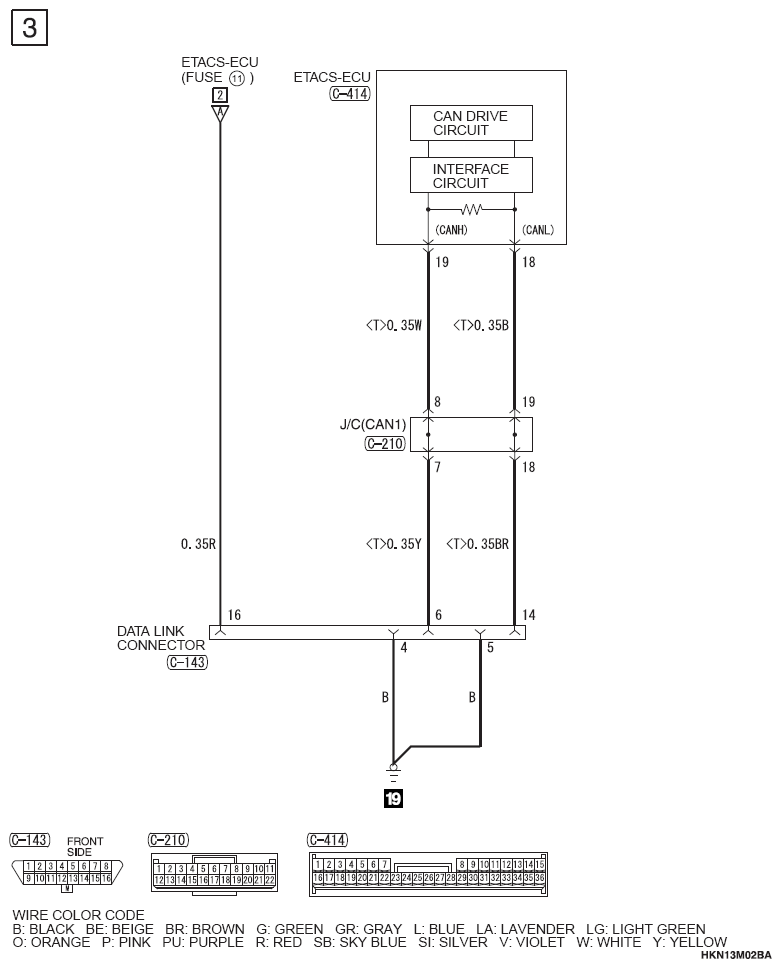

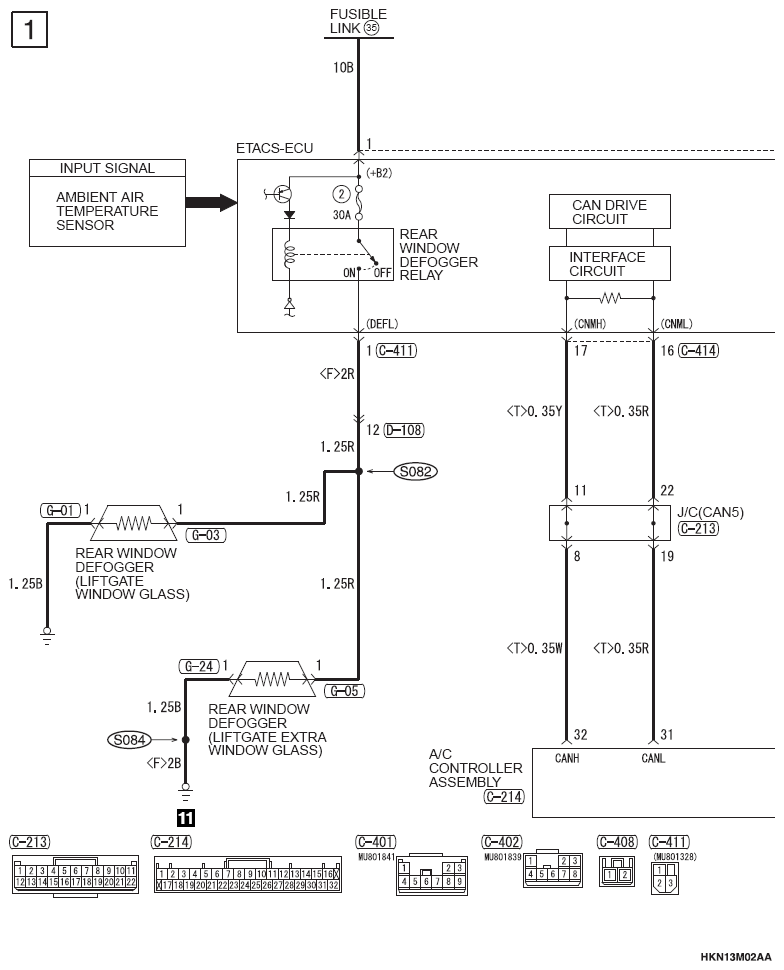

Rear Window Defogger
Rear Window Defogger
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
