Home › Mitsubishi › 2019 › Mirage ES, Standard Trans › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Seat Assembly › Front Seat Assembly › Disassembly And Reassembly › Notes

Disassembly And Reassembly: Notes

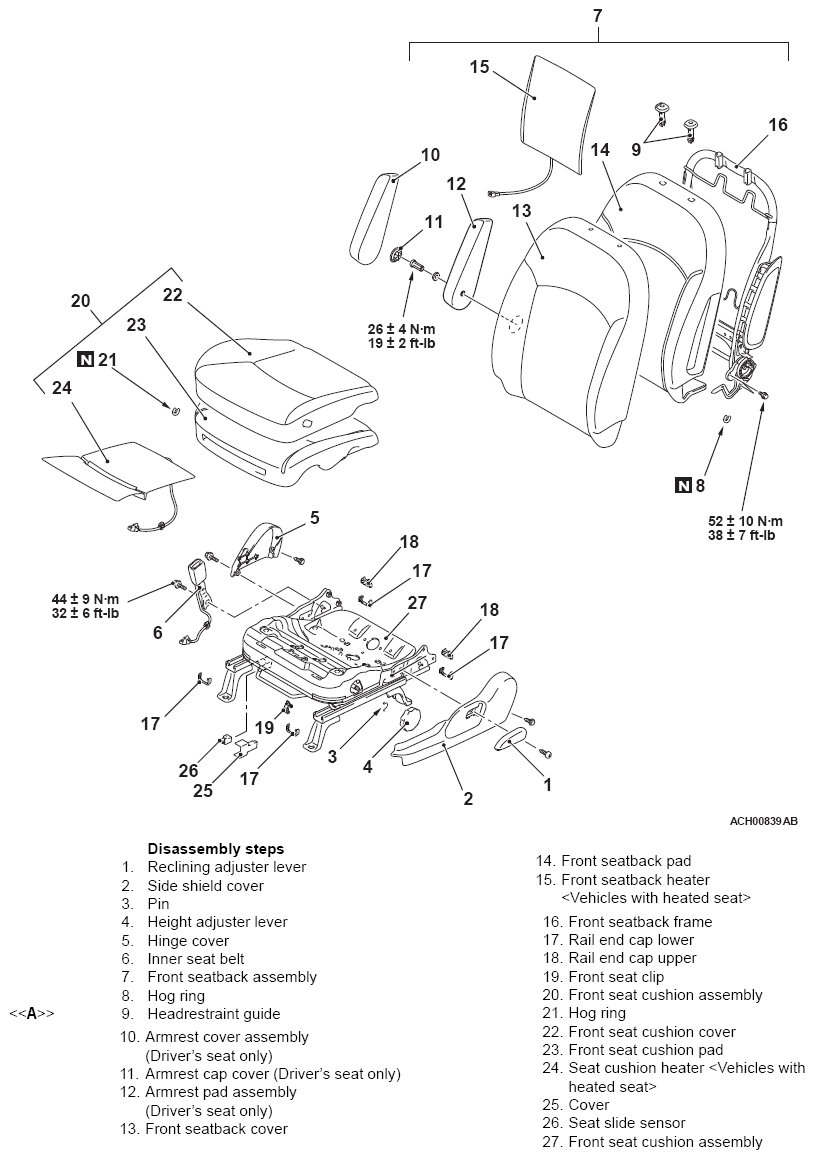

Fig 1: Disassembling/Assembling Front Seat Assembly Components With Torque Specification
G12681730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
