Removal And Installation: Notes

Pre-removal operation

Under Cover Front Removal (Refer to REMOVAL AND INSTALLATION ).
Transmission Oil Draining (Refer to ON-VEHICLE SERVICE ).
Starter Motor Assembly Removal (Refer to STARTER MOTOR ASSEMBLY ).
Drive Shaft Removal (Refer to DRIVE SHAFT ASSEMBLY ).
Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Battery and Battery Tray Removal (Refer to BATTERY ).

Post-installation operation

Clutch Pedal Check And Adjustment (Refer to GENERAL DESCRIPTION ).
Battery and Battery Tray Installation (Refer to BATTERY ).
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Drive Shaft Installation (Refer to DRIVE SHAFT ASSEMBLY .)
Starter Motor Assembly Installation (Refer to STARTER MOTOR ASSEMBLY ).
Transmission Oil Refilling (Refer to ON-VEHICLE SERVICE ).
Under Cover Front Installation (Refer to REMOVAL AND INSTALLATION ).

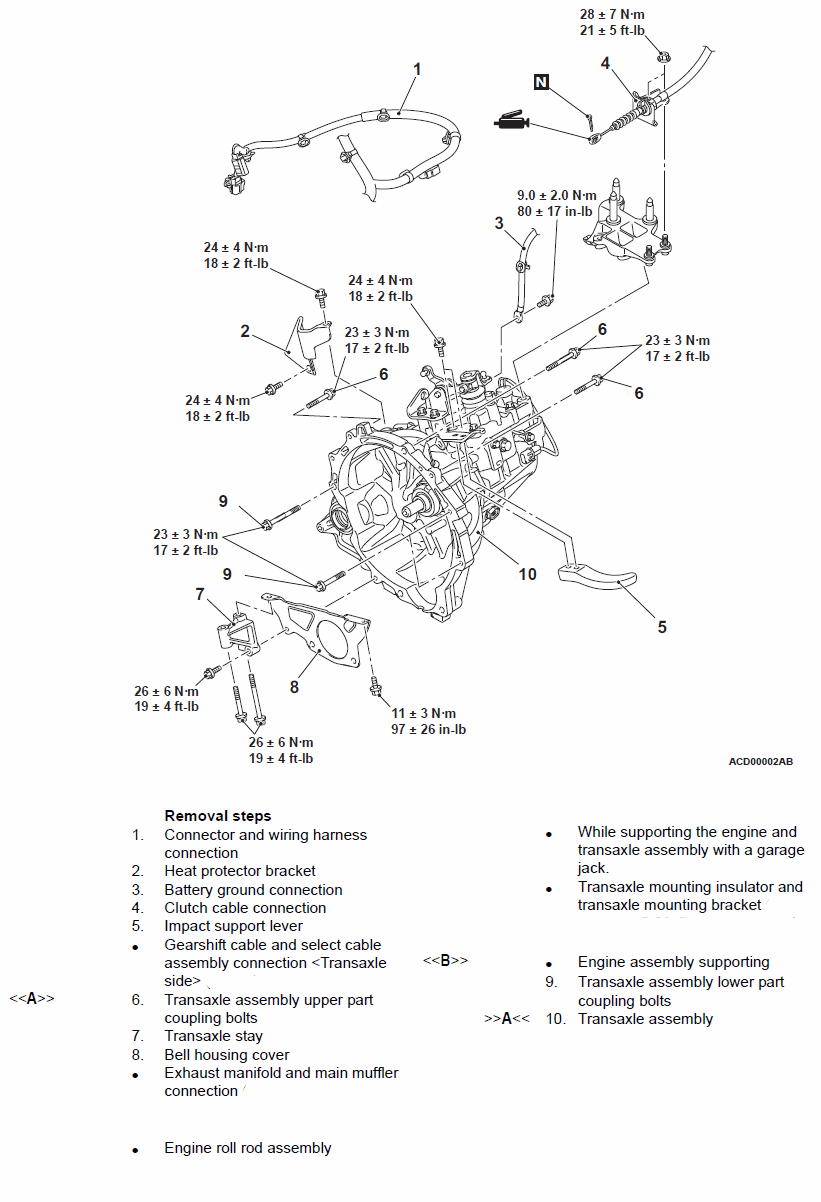

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specification

G12685101

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991928: Engine Hanger
- Slide Bracket (HI)
- MB991932: Foot (standard)
- MB991929: Joint (50)
MB991895: Engine Hanger
MB992906: Engine Hanger Attachment
