Removal And Installation: Notes

Pre-removal Operation  Engine Room Under Cover Front Removal (Refer to REMOVAL AND INSTALLATION ).

Post-installation Operation  Engine Room Under Cover Front Installation (Refer to REMOVAL AND INSTALLATION ).

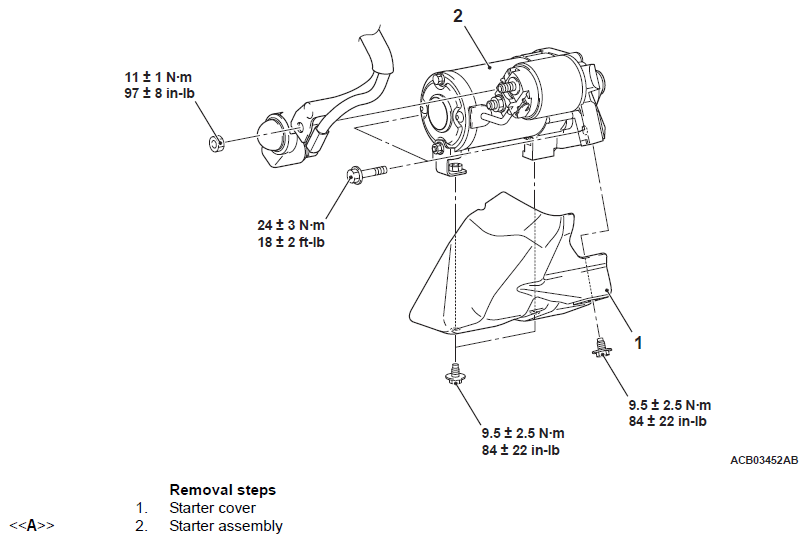

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
