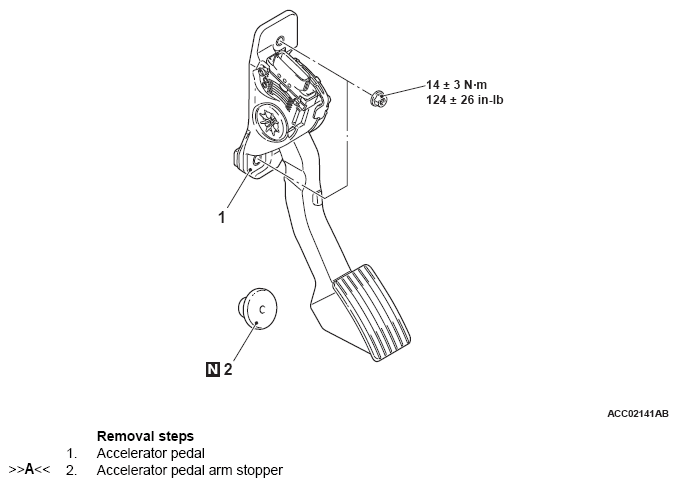

Removal And Installation: Notes
CAUTION:
Never remove the accelerator pedal cover and connector. If the accelerator pedal cover removed, the accelerator pedal position sensor does not work normally.
Pre-removal and post-installation operation
- Instrument Panel Lower Cover Removal and Installation. Refer to INSTRUMENT LOWER PANEL .
