Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.

Post-installation operation  Shift lock mechanism check. Refer to SHIFT LOCK MECHANISM CHECK ). Selector lever operation check. Refer to SELECTOR LEVER OPERATION CHECK .

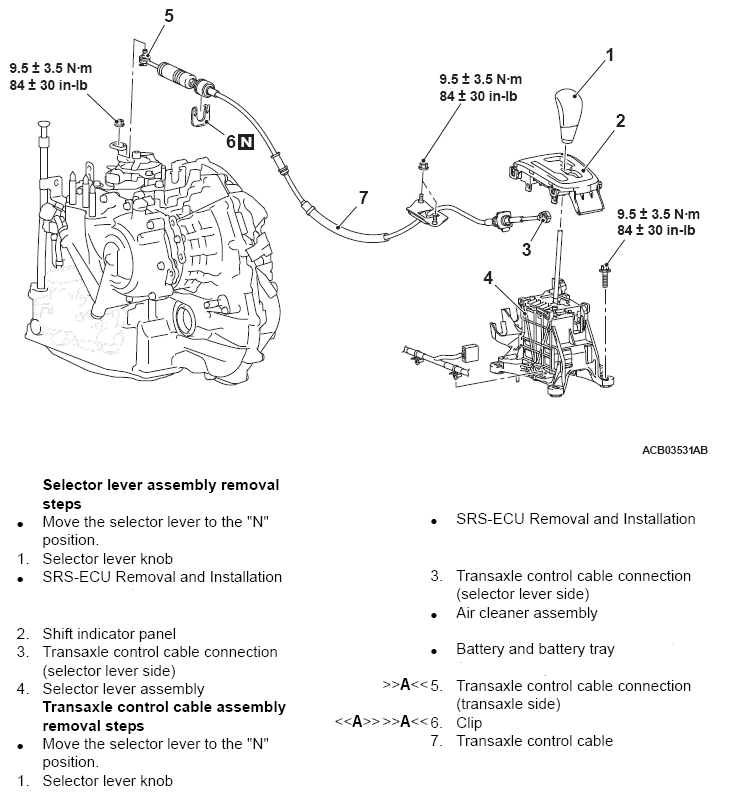

Fig 1: Removing/Installing Transaxle Control Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
