Engine Compartment

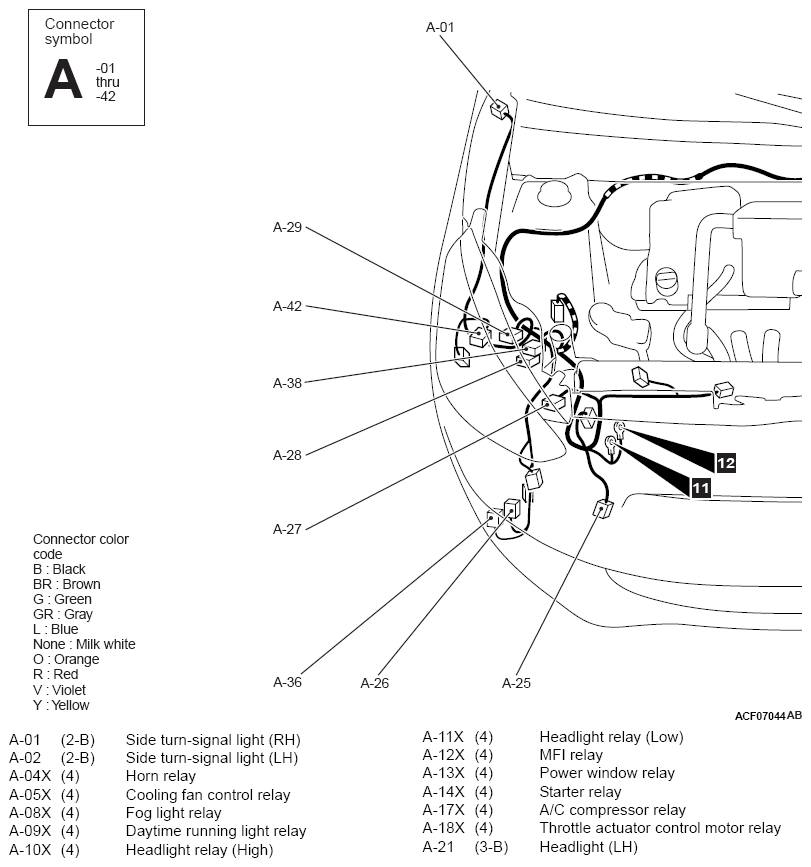

G12682522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

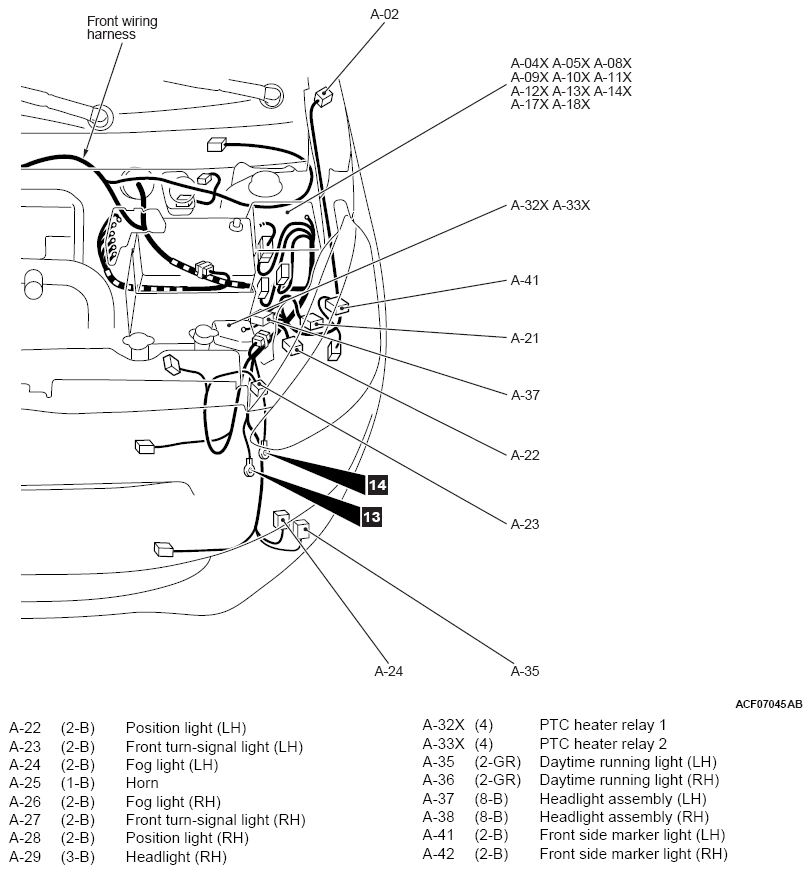

G12682523Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

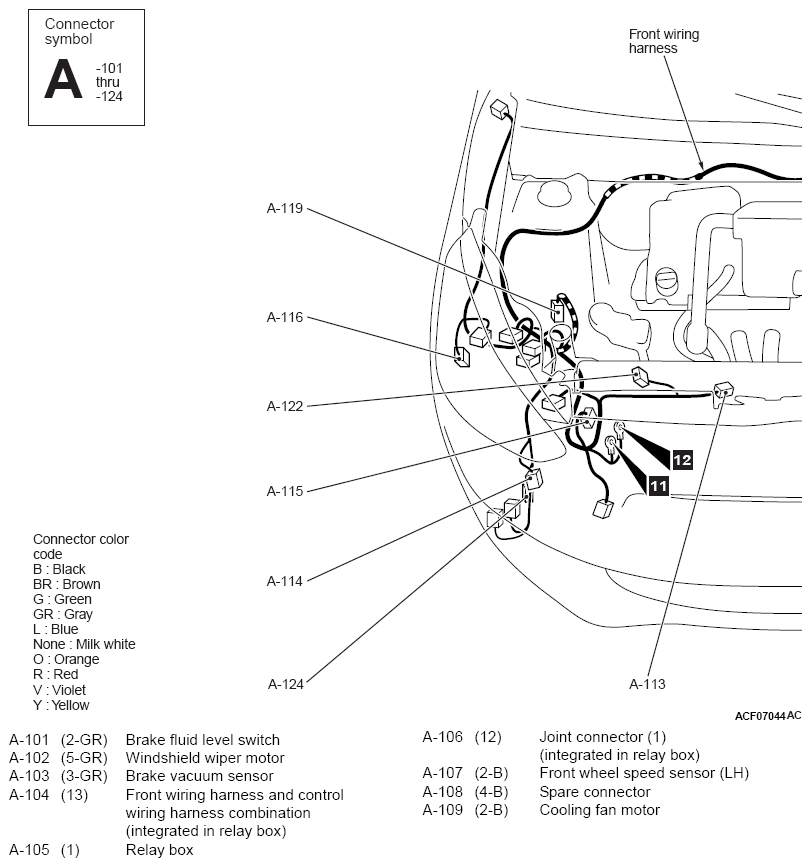

G12682524Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

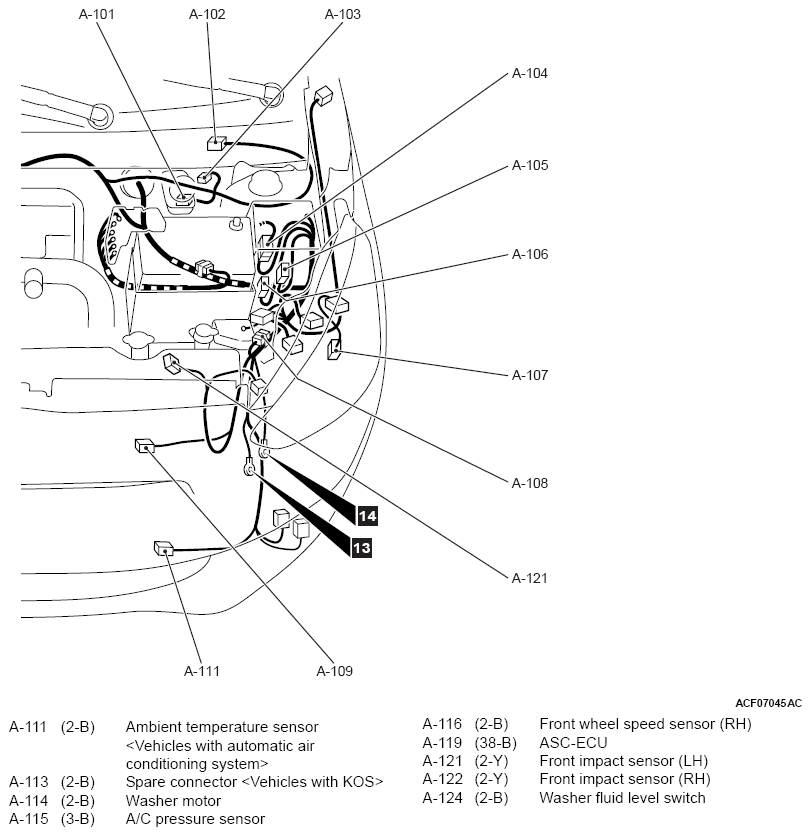

G12682525Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
