Removal And Installation: Notes

Pre-removal Operation  Fuel Draining Rear Seat Cushion Assembly Removal. Refer to REAR SEAT ASSEMBLY .

Post-installation Operation  Checking for Fuel Leaks. Rear Seat Cushion Assembly Installation. Refer to REAR SEAT ASSEMBLY . Refilling Fuel

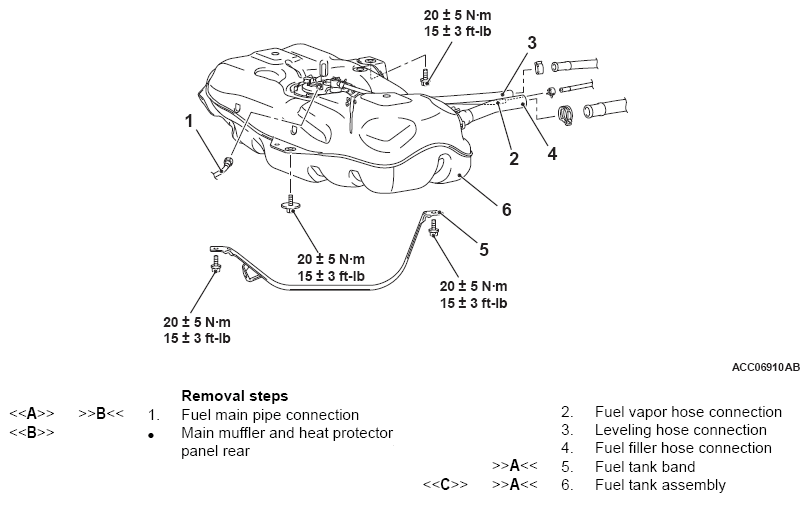

Fig 1: Removing/Installing Fuel Tank Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
