Removal And Installation: Notes

Pre-removal Operation Drive Belt Removal. Refer to CRANKSHAFT PULLEY .

Post-installation Operation Drive Belt Installation. Refer to CRANKSHAFT PULLEY .

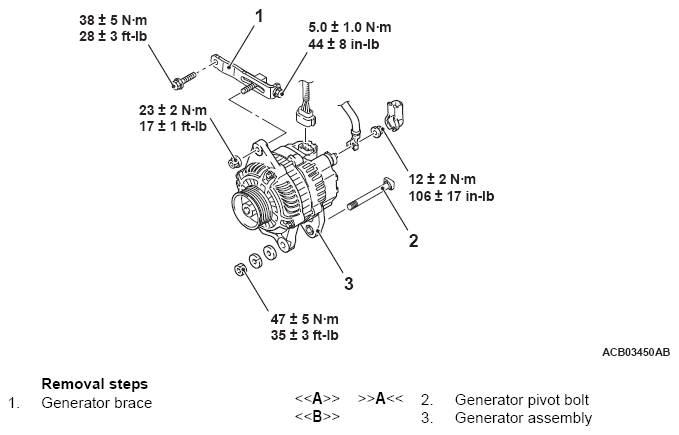

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
