Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not apply lubricant (grease or silicon system sprayer etc.) to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have lubricant (grease or silicon system sprayer etc.) on them.

Pre-removal and Post-installation Operation

Front Scuff Plate >LH> and Cowl Side Trim >LH> Removal and Installation (Refer to TRIMS .)
Steering Column Lower Cover and Side Lower Panel Removal and Installation (Refer to TRIMS .)

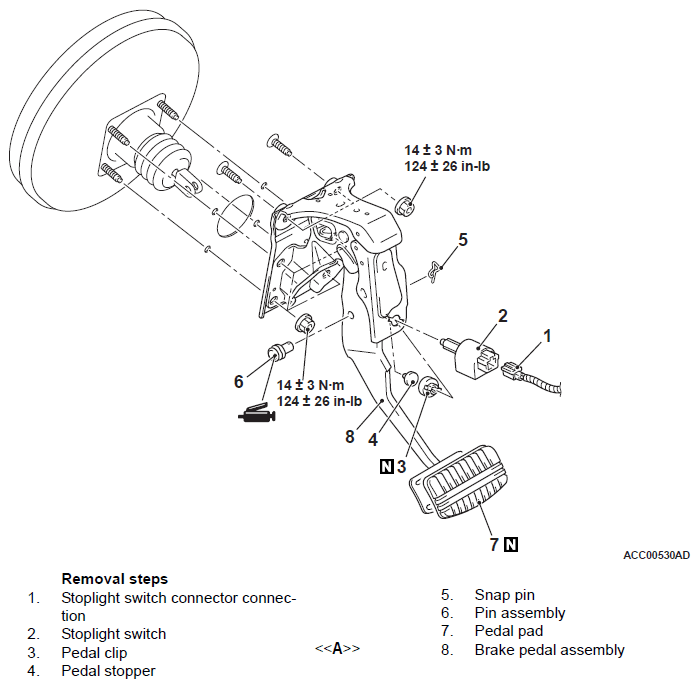

Fig 1: Removing/Installing Brake Pedal Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
