Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

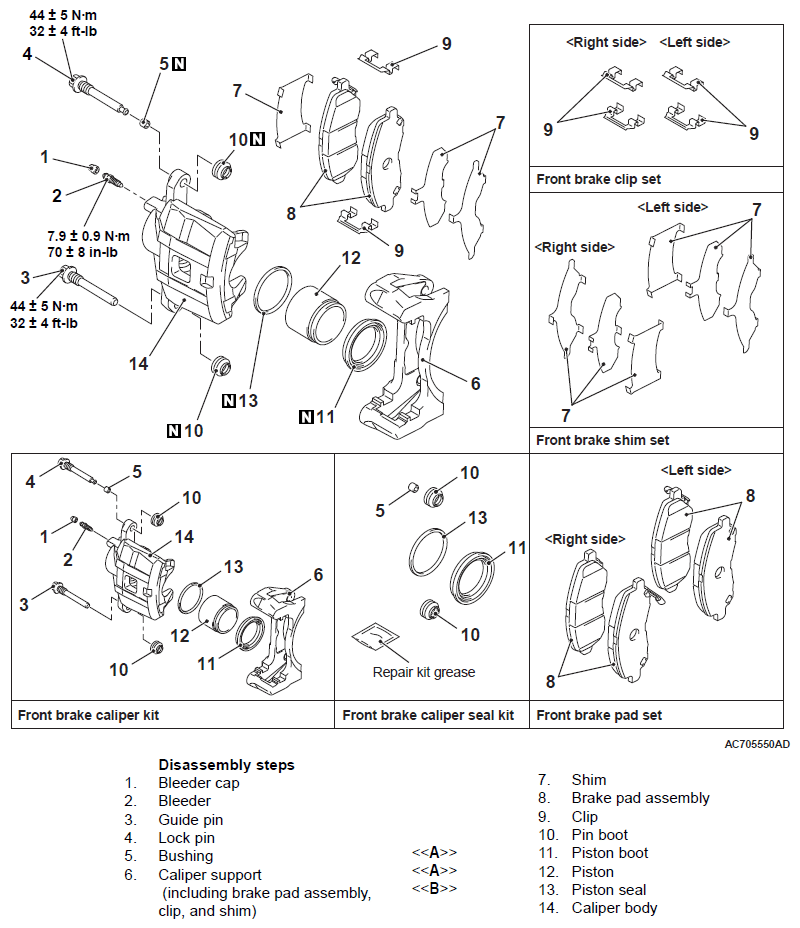

Fig 1: Disassembling/Assembling Front Disc Brake Assembly Components With Torque Specification
G12367828Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
