REMOVAL AND INSTALLATION <2.4L Engine>: Notes

Pre-removal and post-installation operation  Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).

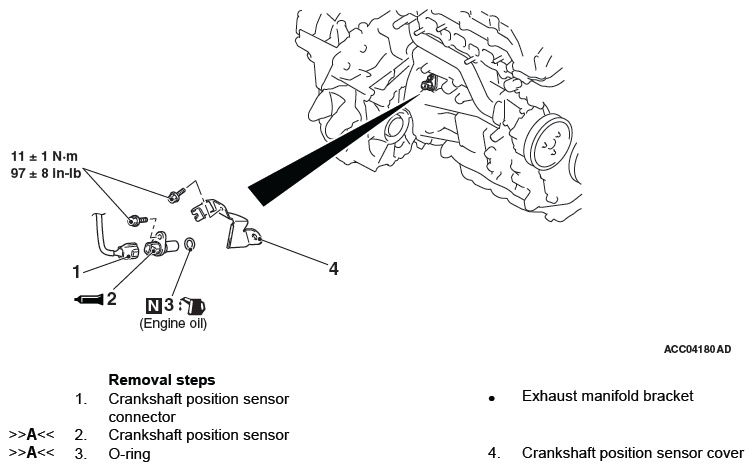

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification (2.4 L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
