Special Tools

Tool Tool number and name Supersession Use

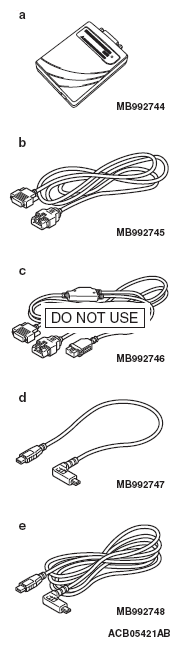

G13088936
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748
  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - Checking diagnostic trouble codes

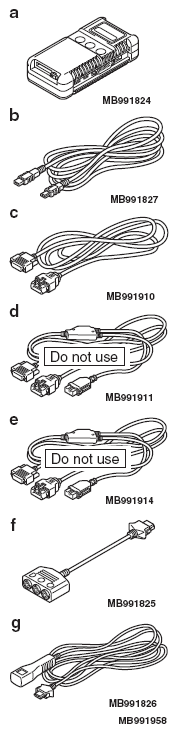

G13088937
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system) e: M.U.T.-III main harness C (for Chrysler models only)
  5. M.U.T.-III measurement adapter
  6. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking diagnostic trouble codes
G08294095
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
G05102584
 MD998330
(Includes MD998331)
Oil pressure gauge (3.0 MPa, 435 psi)		 MD998330-01 Measurement of hydraulic pressure
G13088940
 MB992127
Joint		 -
G13088941
 MB995062
Flushing tool		 MLR-6906-C or Equivalent Flushing cooler and tube
G13088942
 MB992075
Handle		 - Use with oil seal installer
G13088943
 MB992140
Oil seal installer		 - Installation of side oil seal
G13088944
 MB992206
Oil seal installer		 - Installation of side oil seal
G05093218
 MB991454 Engine hanger balancer MZ203827-01 Engine assembly support during transaxle assembly removal and installation {For the engine hanger balancer (MB991454), use chains only.}
NOTE: Engine hanger balancer (MB991454) is a part of the engine hanger assembly (MB991453).
G05102596
 MB991527 Engine hanger -
G05093219
 MB991895 Engine hanger Tool not available
G09628206
 MB992906 Engine hanger attachment Tool not available
G10221712
 MB992853 Engine hanger plate -
