Removal And Installation

Pre-removal and post-installation operation  Bottom Cover Assembly (driver's side) Removal and Installation (Refer to INSTRUMENT PANEL ASSEMBLY ).

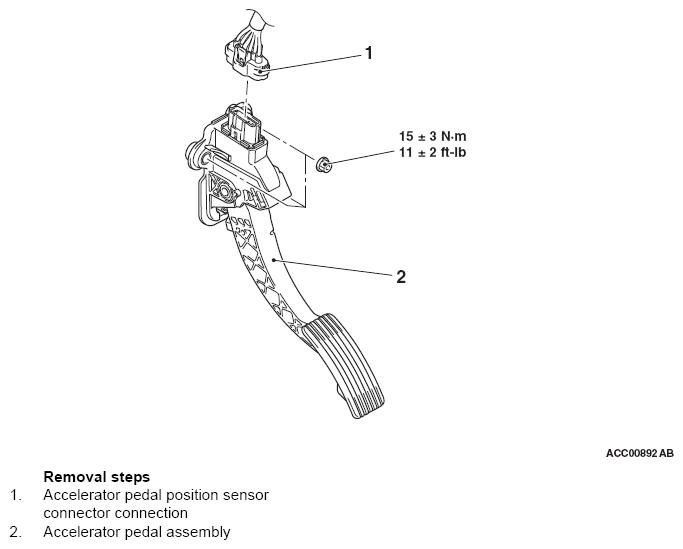

Fig 1: Removing/Installing Accelerator Pedal Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
