Notes
Disassembly And Assembly: Notes
<FUEL TANK ASSEMBLY>

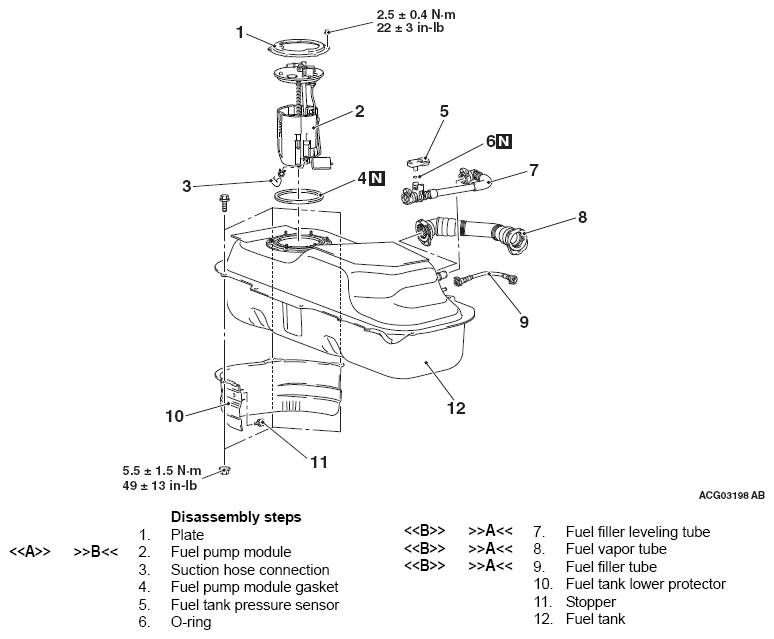

Fig 1: Disassembling/Assembling Fuel Tank Assembly Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
