Removal And Installation

Pre-removal and Post-installation Operation

Instrument Panel Lower Center Removal and Installation (Refer to INSTRUMENT PANEL ASSEMBLY ).

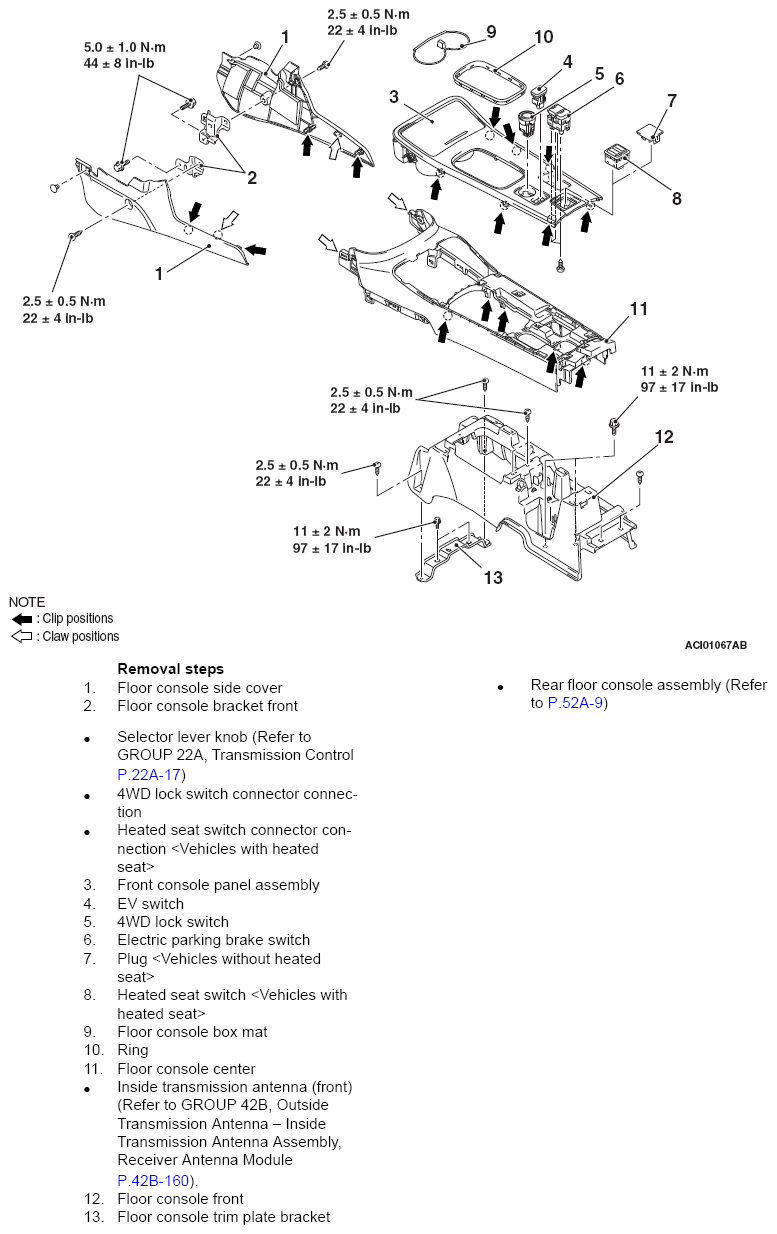

Fig 1: Removing/Installing Front Floor Console Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
