Disassembly And Reassembly: Notes

CAUTION:

Always replace the front seat cushion assembly together with the occupant classification-ECU.<Passenger's side>
When replacing the front seat cushion assembly, be careful not to apply static electricity to it. <Passenger's side>
The front seat cushion assembly must not be damped with any liquid or steam. <Passenger's side>

<DRIVER'S SEAT (POWER SEAT)>

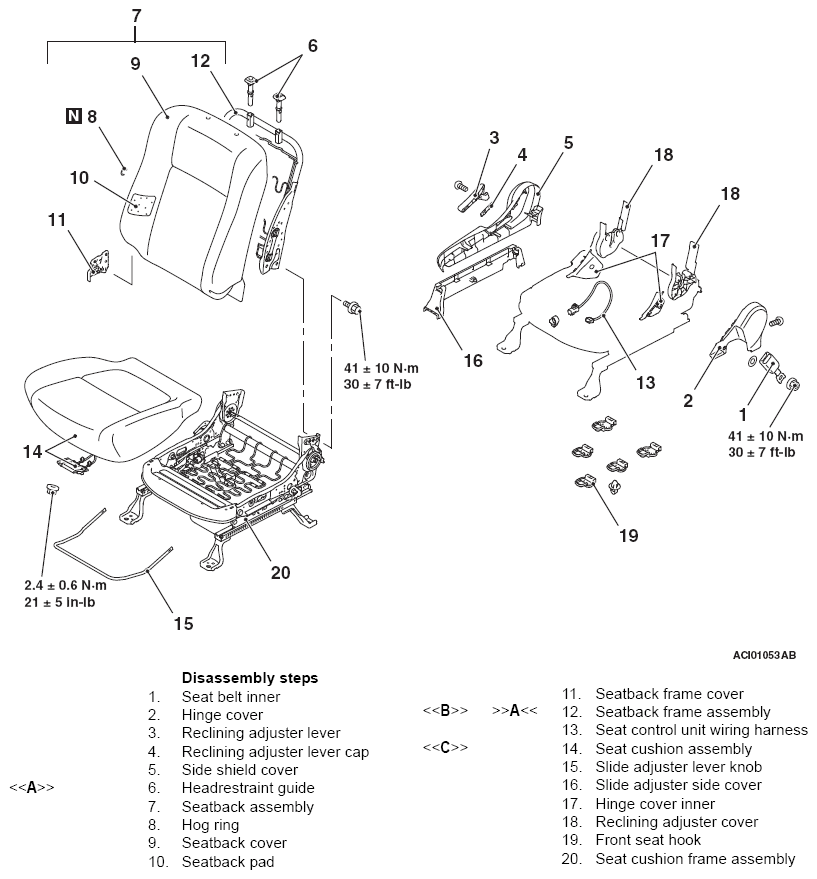

Fig 1: Disassembling/Reassembling Driver'S Seat (Power Seat) Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<PASSENGER'S SEAT (MANUAL SEAT)>

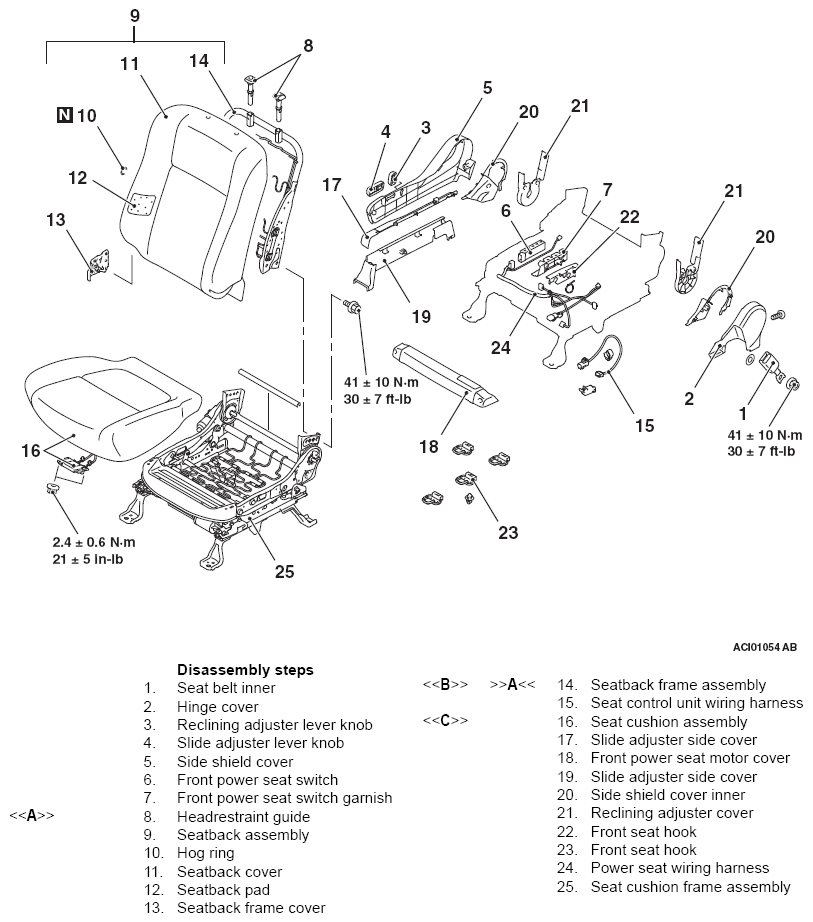

Fig 2: Disassembling/Reassembling Passenger'S Seat (Manual Seat) Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

<PASSENGER'S SEAT (POWER SEAT)>

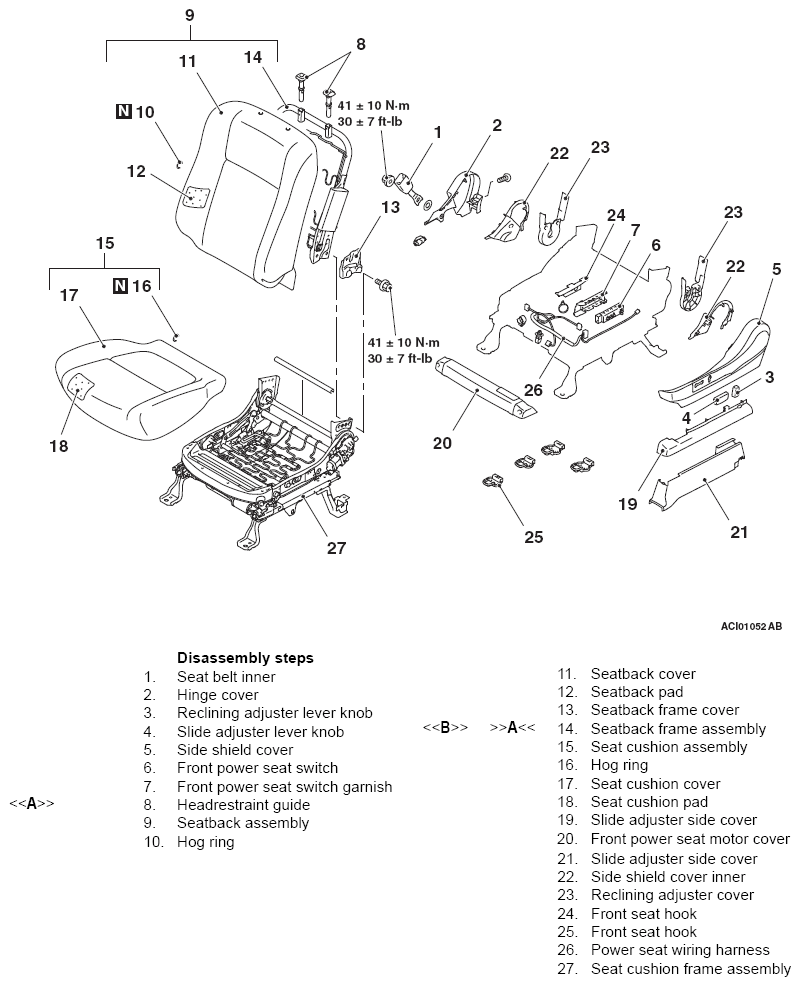

Fig 3: Disassembling/Reassembling Passenger'S Seat (Power Seat) Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
