Notes
Disassembly And Assembly: Notes
<LH>

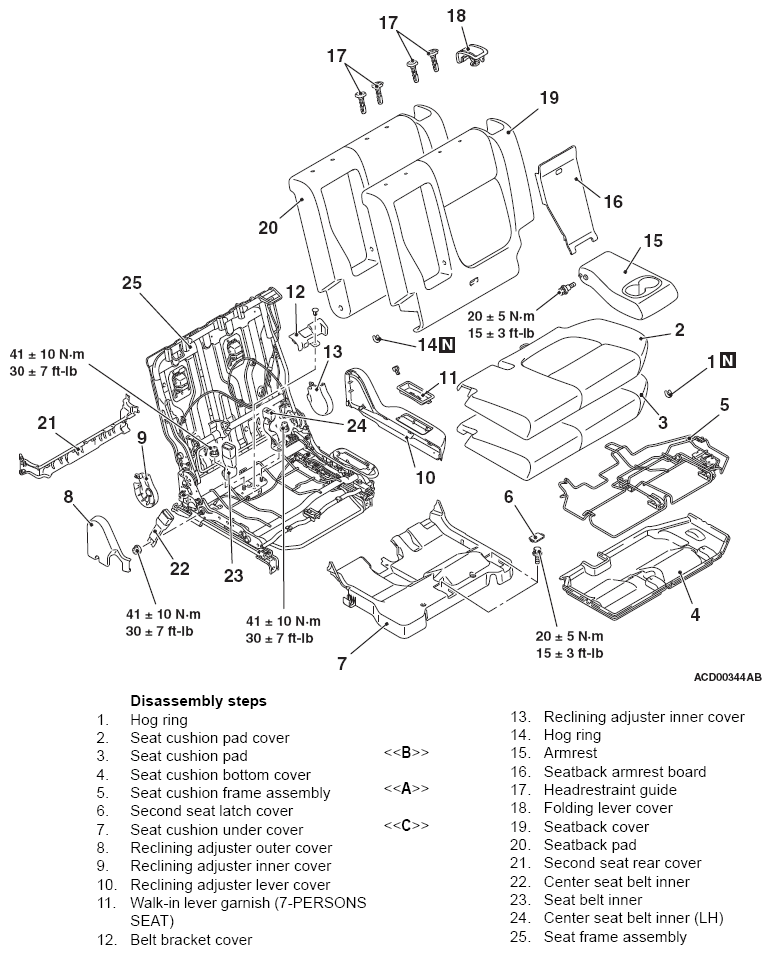

Fig 1: Disassembling/Reassembling Second Seat Assembly Components Location With Torque Specification (LH)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
