Disassembly And Reassembly: Notes

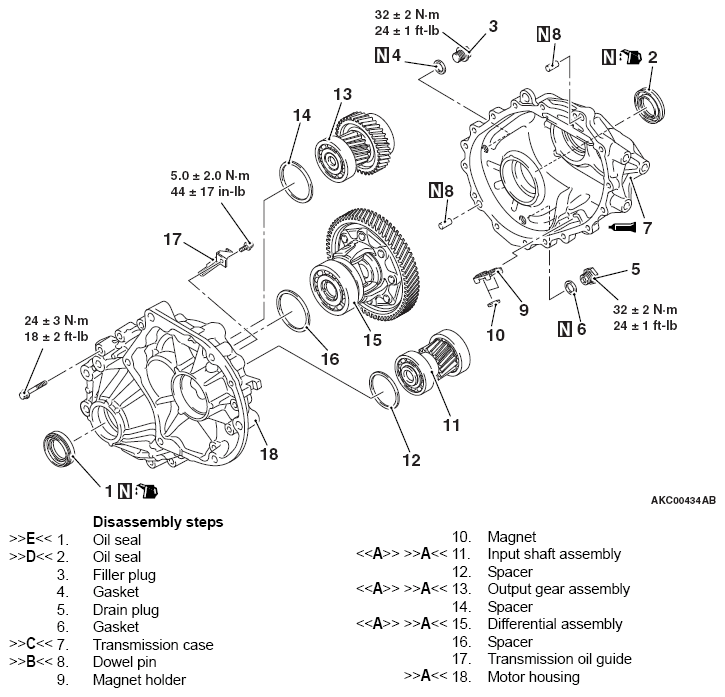

Fig 1: Disassembling/Reassembling Rear Transaxle Components Location With Torque Specification
G13121510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
