Electrical Component Locations
›

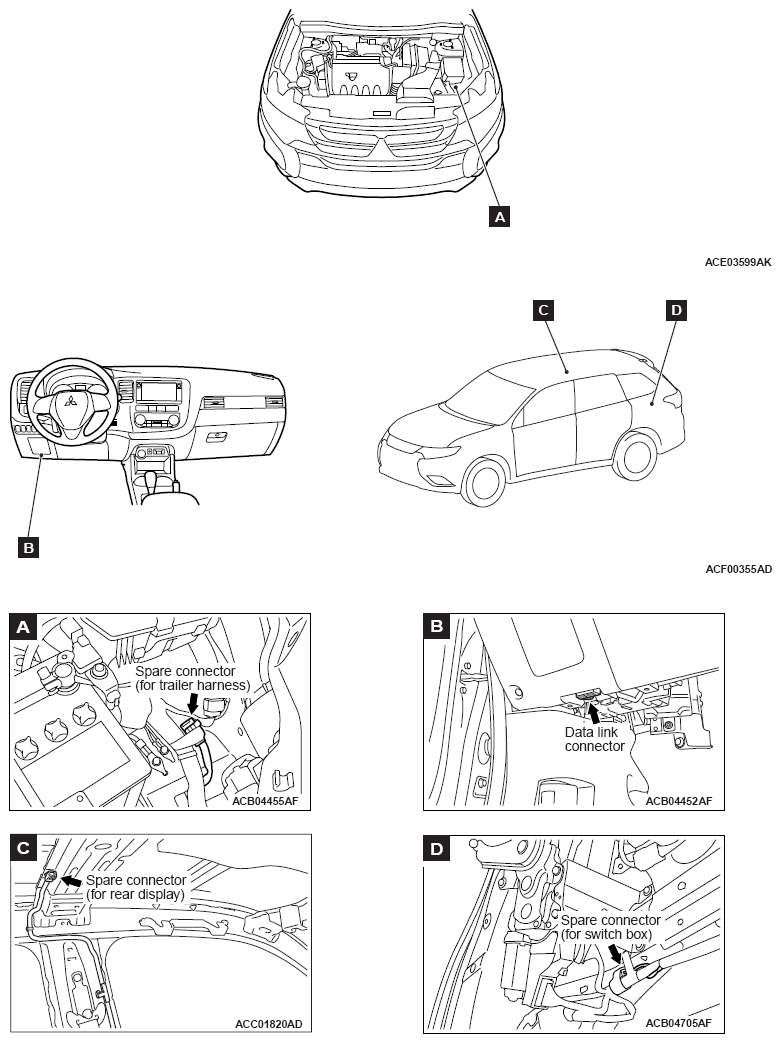

Inspection Terminal
Inspection Terminal
Name
Symbol
Name
Symbol
Data link connector
B
Spare connector (for switch box)
D
Spare connector (for rear display)
C
Spare connector (for trailer harness)
A
