Component Locations: Grounding

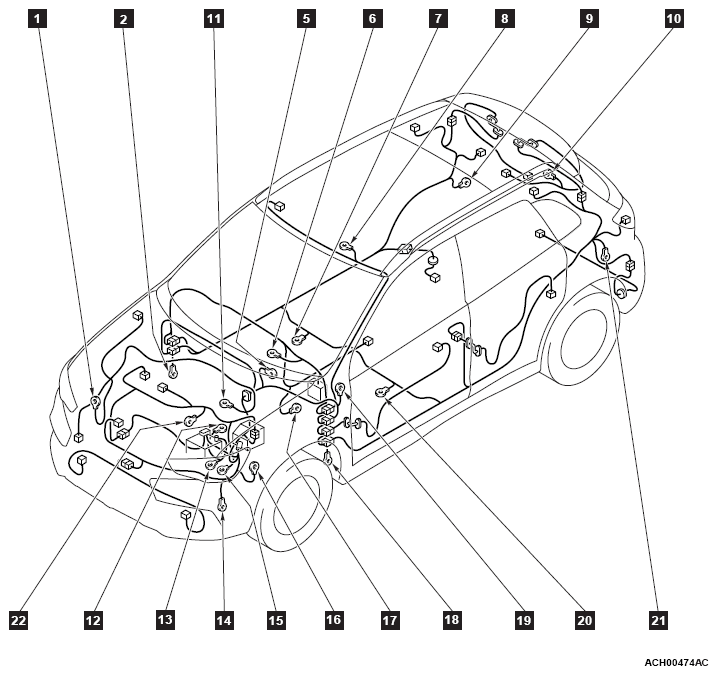

G12669722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

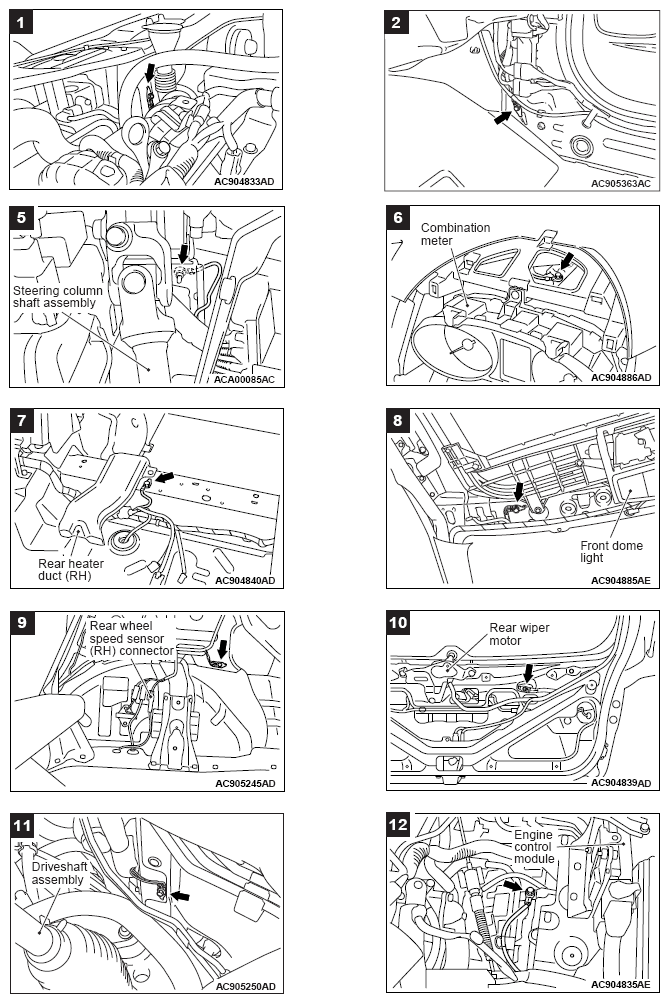

G12669723Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

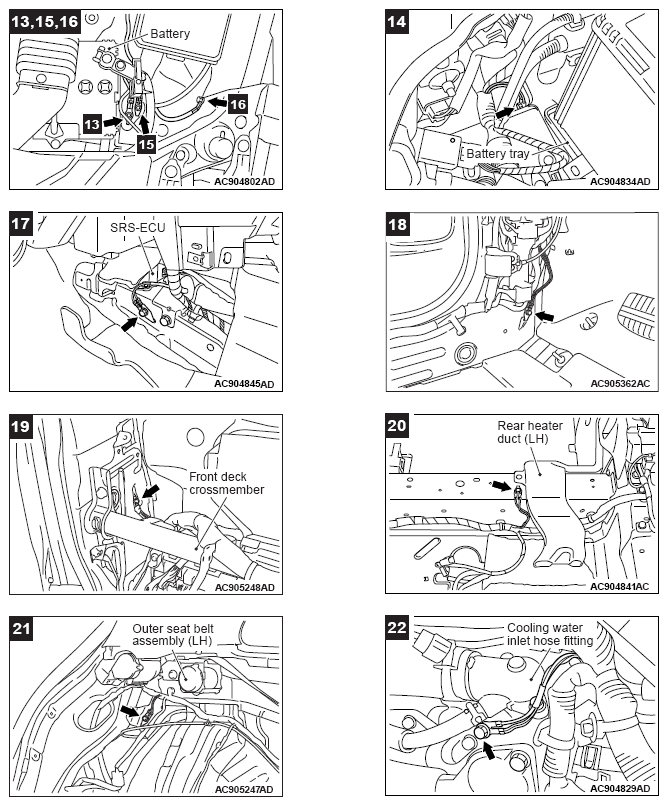

G12669724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
