Removal And Installation

Pre-removal and post-installation operation
Air Cleaner Assembly Removal and Installation (Refer to AIR CLEANER ).

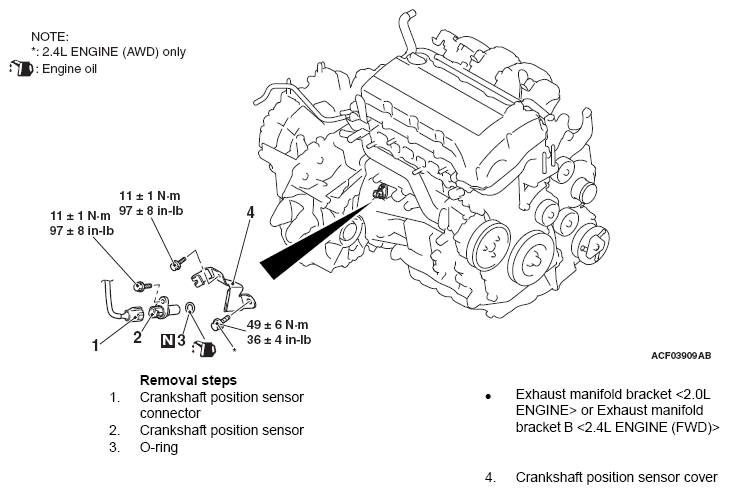

Fig 1: Crankshaft Position Sensor Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
