Removal And Installation
Removal And Installation

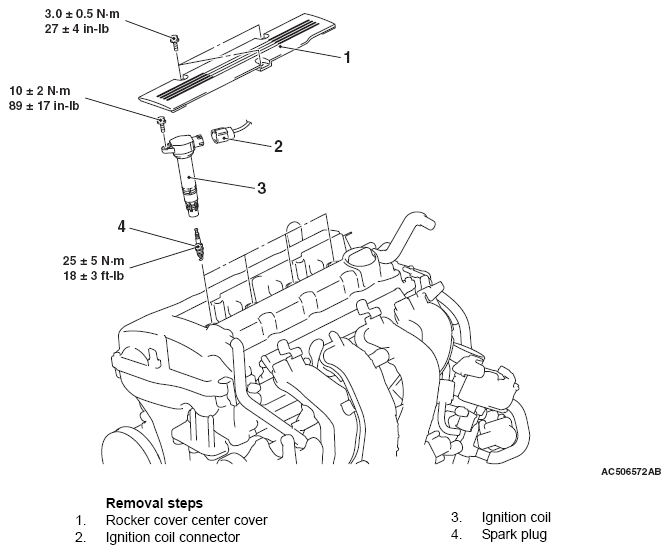

Fig 1: Ignition Coil Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
