Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

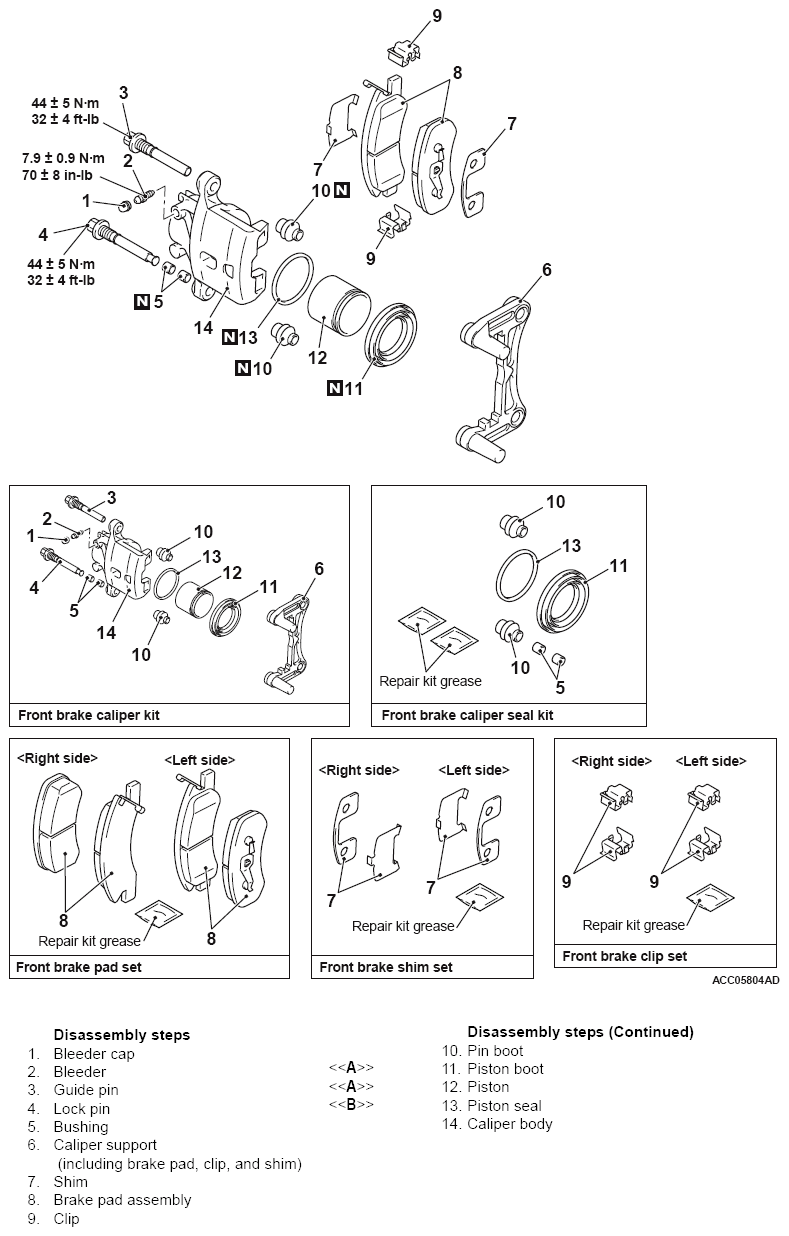

Fig 1: Removing/Installing Front Disc Brake Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
