Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal Operation Brake Fluid Draining

Post-installation Operation Brake Fluid Refilling and Air Bleeding (Refer to BLEEDING ).

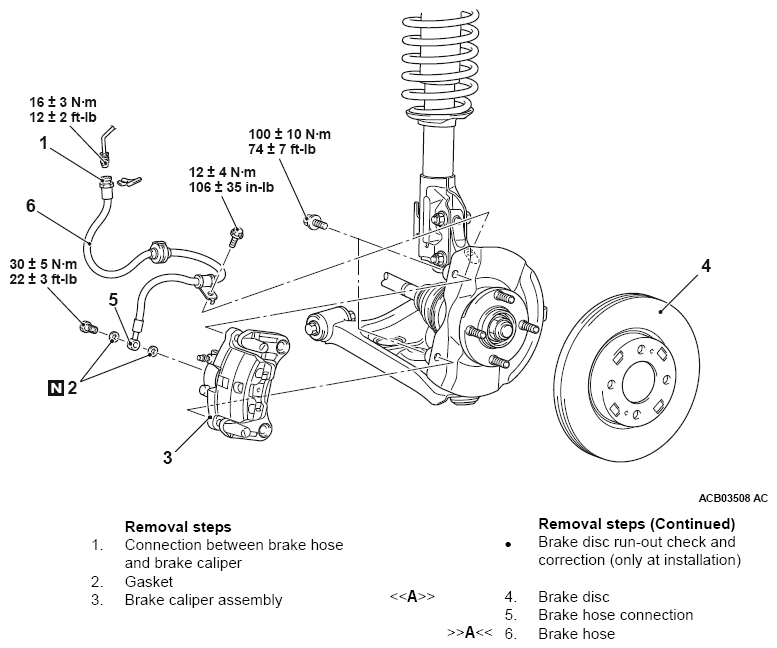

Fig 1: Removing/Installing Front Disc Brake Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
