Removal And Installation

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal and Post-installation operation Radio and CD Player Removal and Installation (Refer to RADIO AND CD PLAYER REMOVAL AND INSTALLATION )

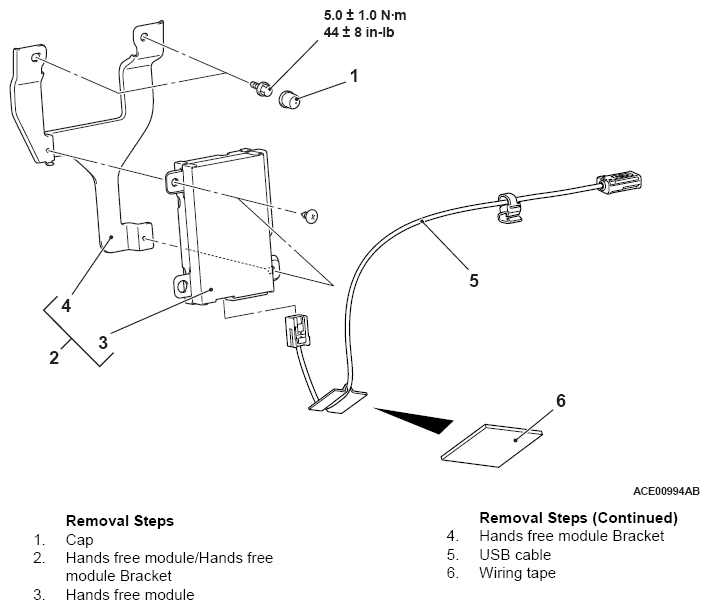

Fig 1: Removal/ Installation Of Hands Free Module Replacement Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
