Dash Panel: Notes

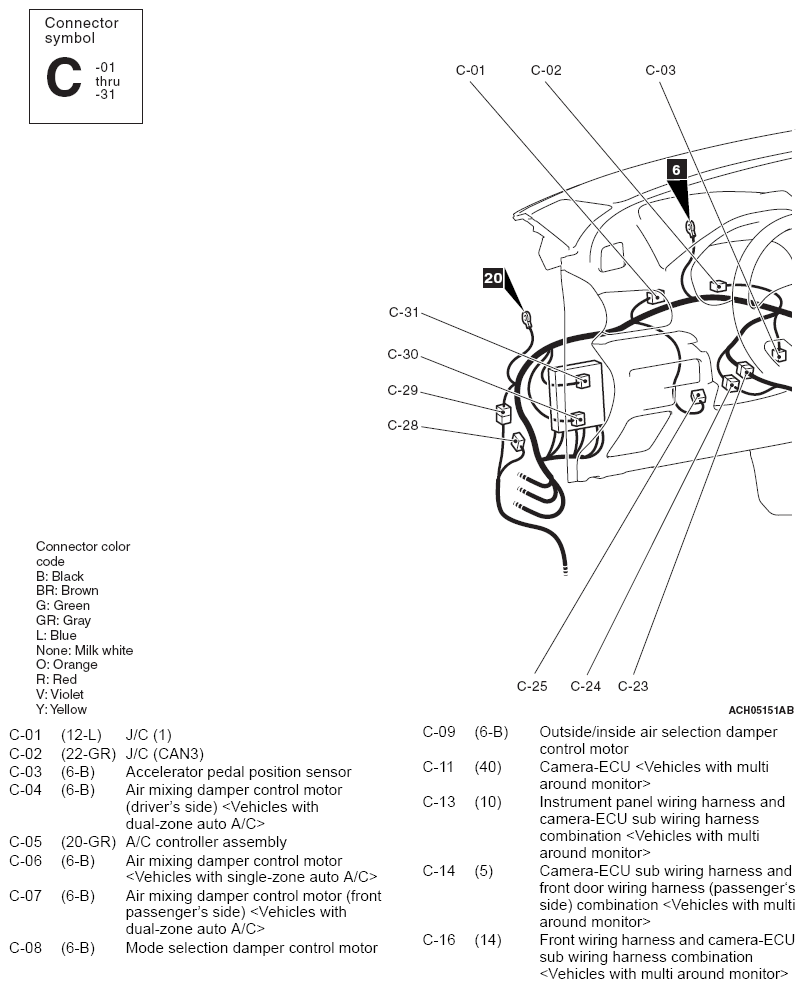

G13325658Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

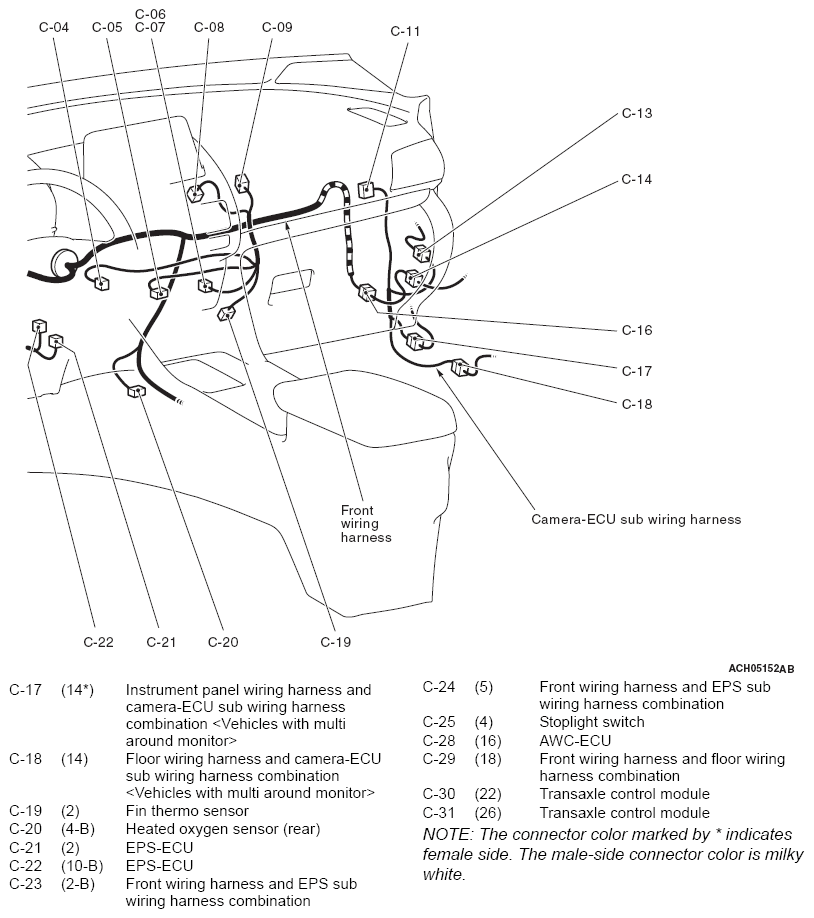

G13325659Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

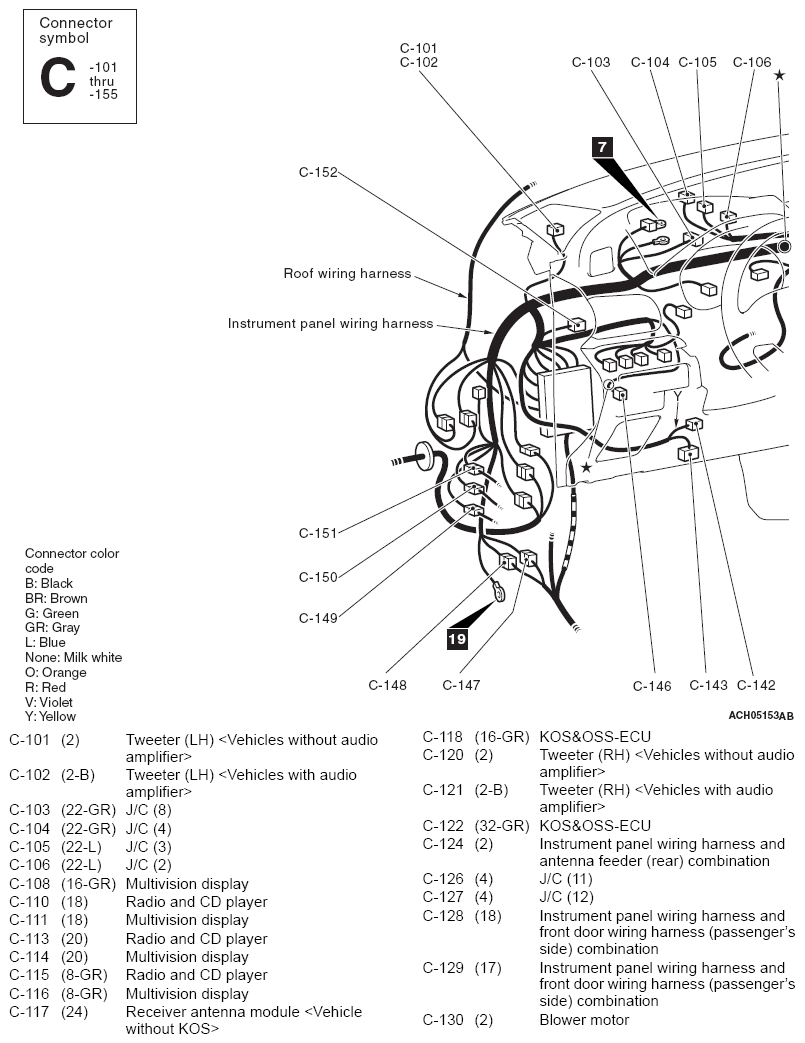

G13325660Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

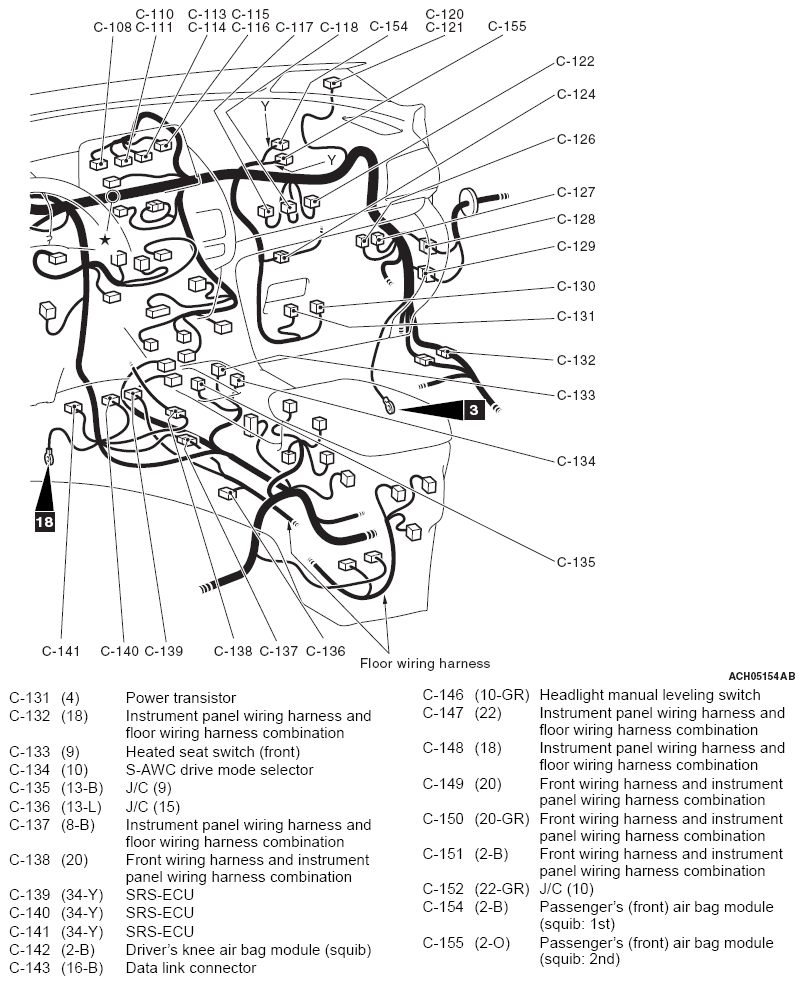

G13325661Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

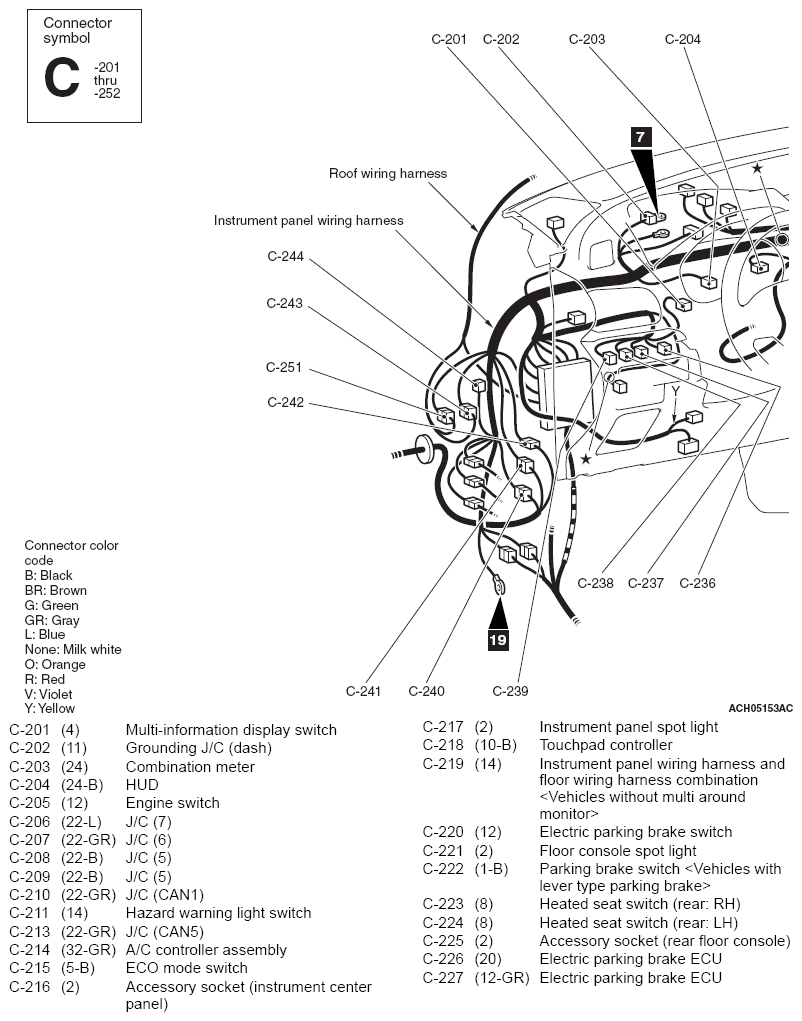

G13325662Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

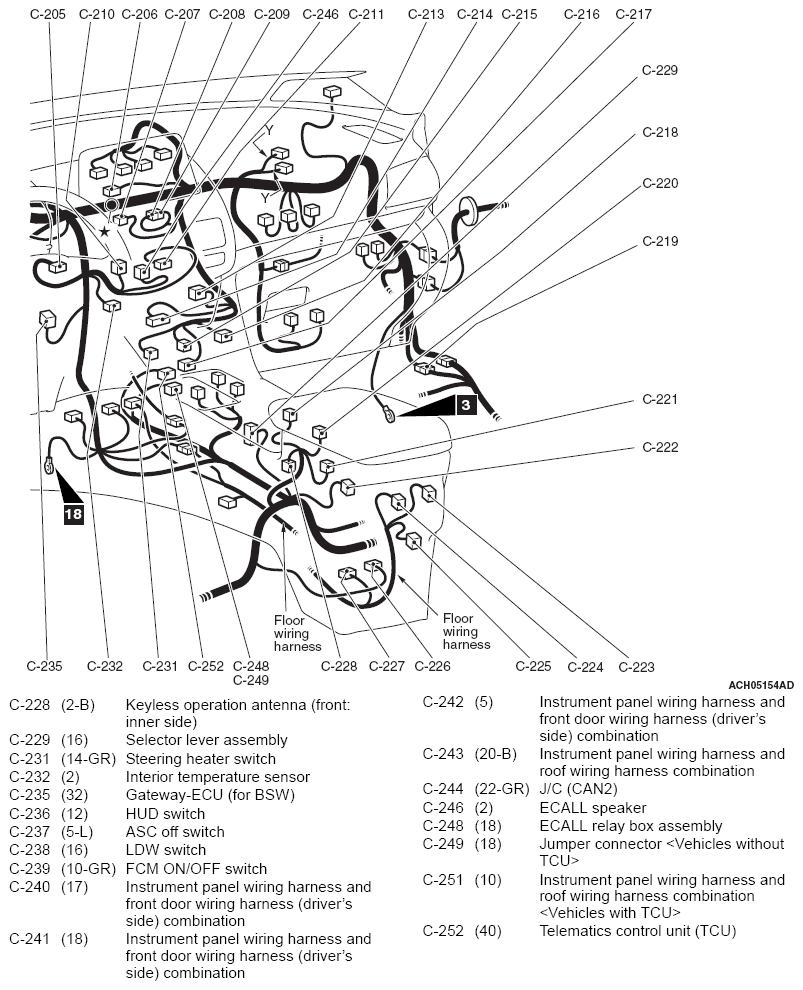

G13325663Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

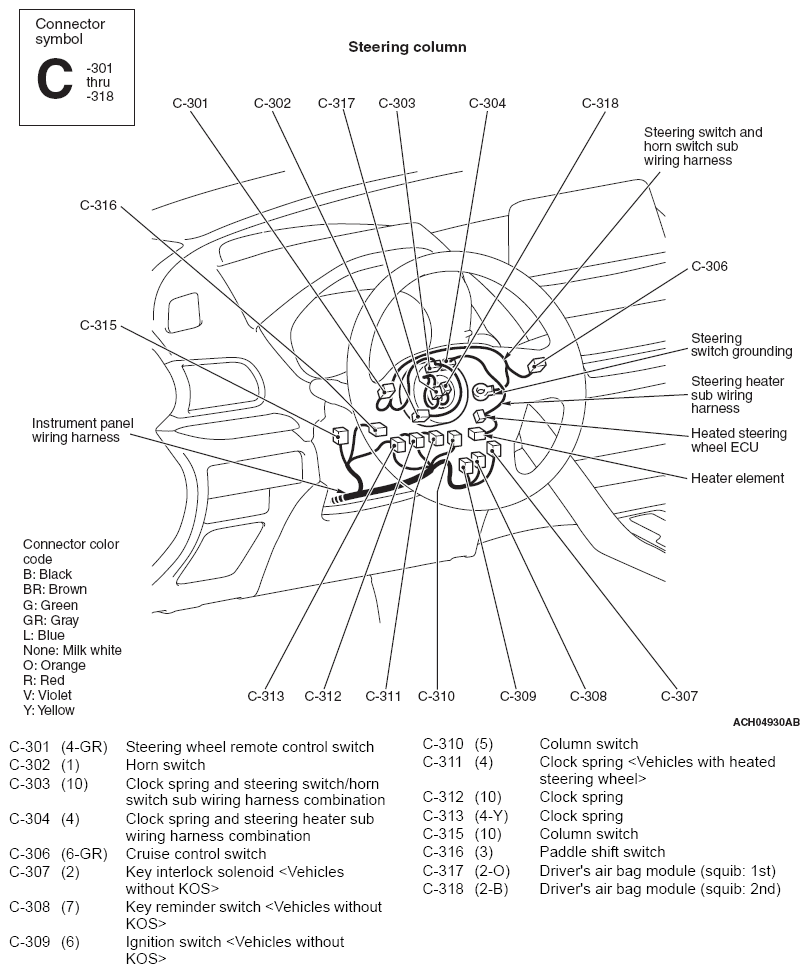

G13325664Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

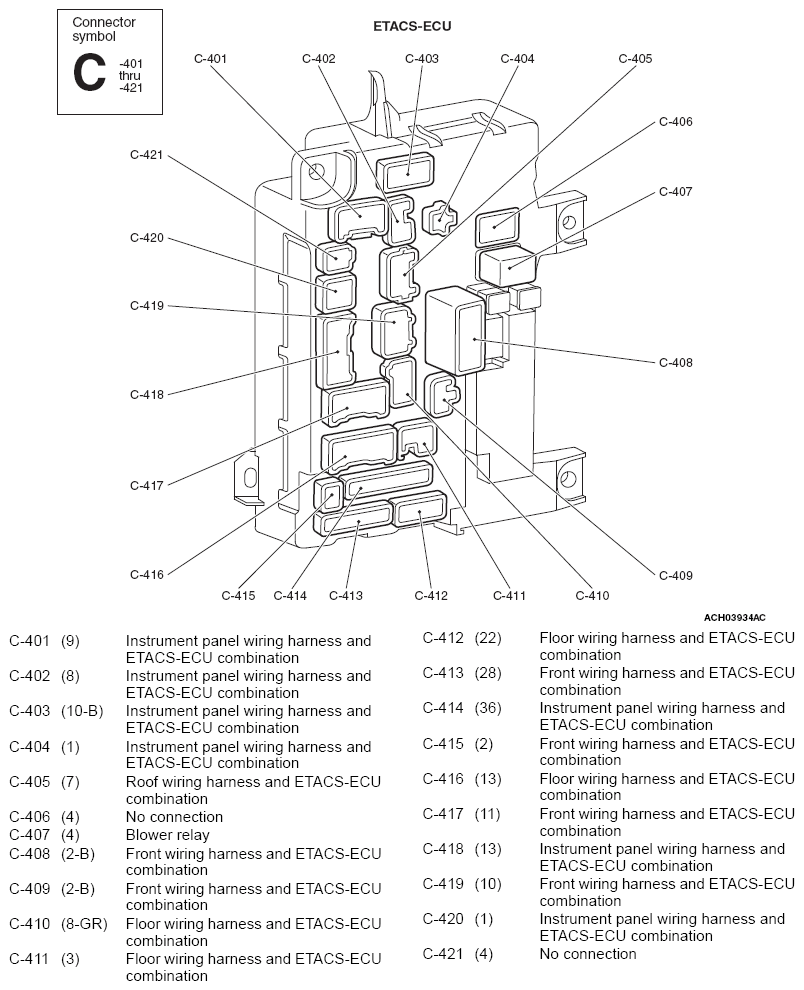

G13325665Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
