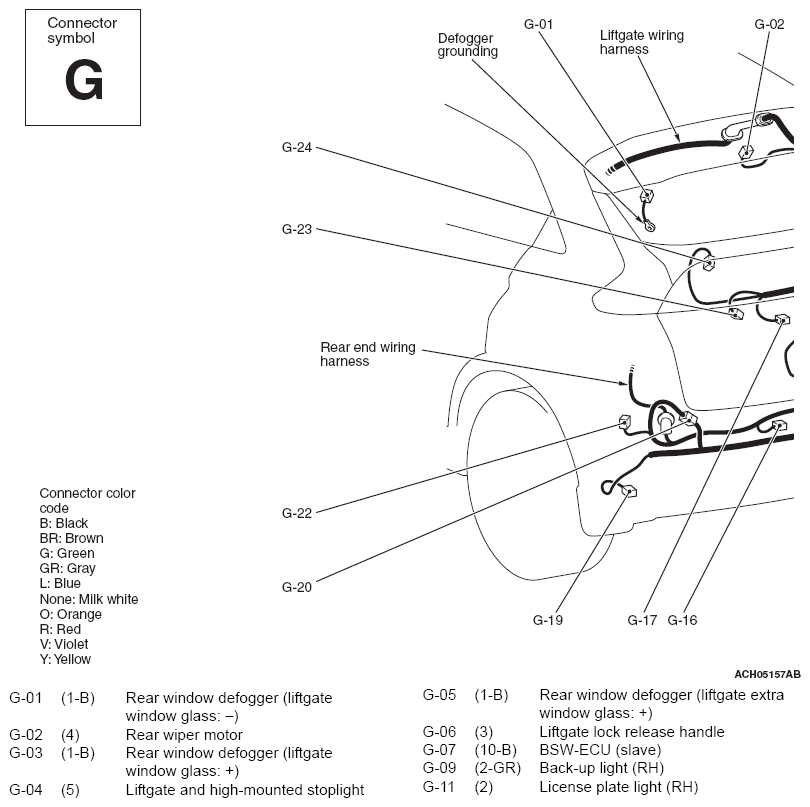

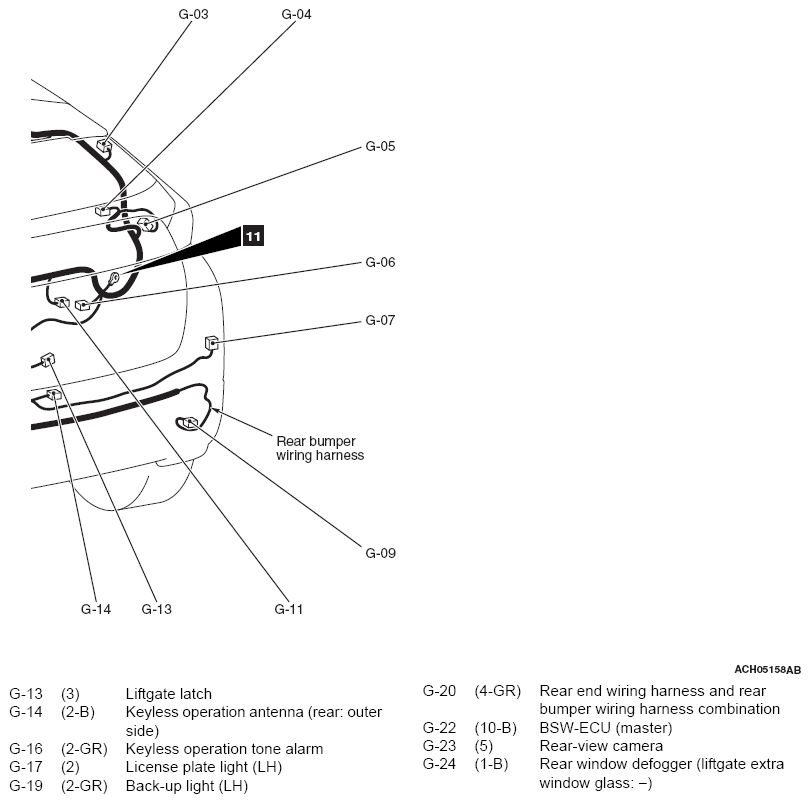

Configuration Diagrams: Liftgate

CAUTION: Aluminum wires are partially used for the liftgate wiring harness.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
