Removal And Installation: Notes

Pre-removal Operation  Engine Room Under Cover Front A, B Removal (Refer to UNDER COVER ). Engine Coolant Draining (Refer to ENGINE COOLANT CHANGE ). Engine Oil Filter Removal (Refer to ENGINE OIL FILTER REPLACEMENT  ).

Post-installation Operation  Engine Oil Filter Installation (Refer to ENGINE OIL FILTER REPLACEMENT  ). Engine Coolant Refilling (Refer to ENGINE COOLANT CHANGE ). Engine Room Under Cover Front A, B Installation (Refer to UNDER COVER ).

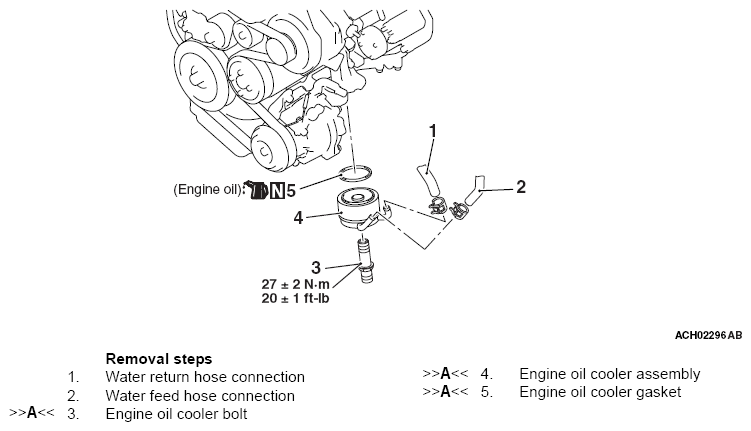

Fig 1: Removing/Installing Engine Oil Cooler Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
