Centralized Relay
| Connector No. | Name | Connector No. | Name |
|---|---|---|---|
| A-05X | Daytime running light relay | A-06X | Front fog light relay |
| A-08X | Theft-alarm horn relay | A-09X | Heated seat relay |
| A-10X | Throttle actuator control motor relay | A-12X | MFI relay |
| A-14X | Starter relay | A-15X | Steering heater relay |
| A-16X | Fan control relay | A-17X | Headlight relay (HI) |
| A-18X | Radiator fan relay | A-20X | Condenser fan relay |
| A-21X | Horn relay | A-22X | A/C compressor relay |

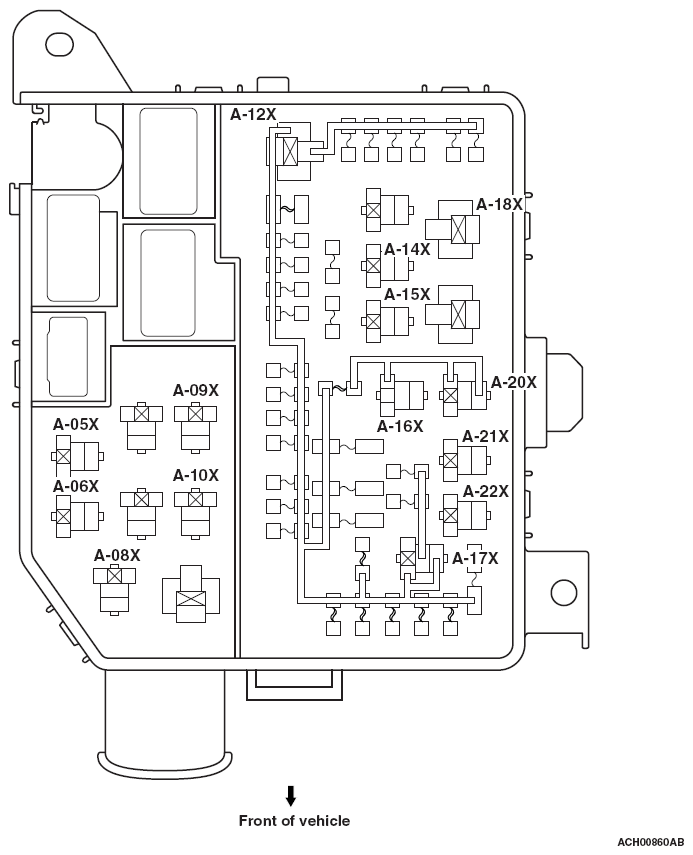

Relay box in engine compartment
