Cooling System
Cooling System

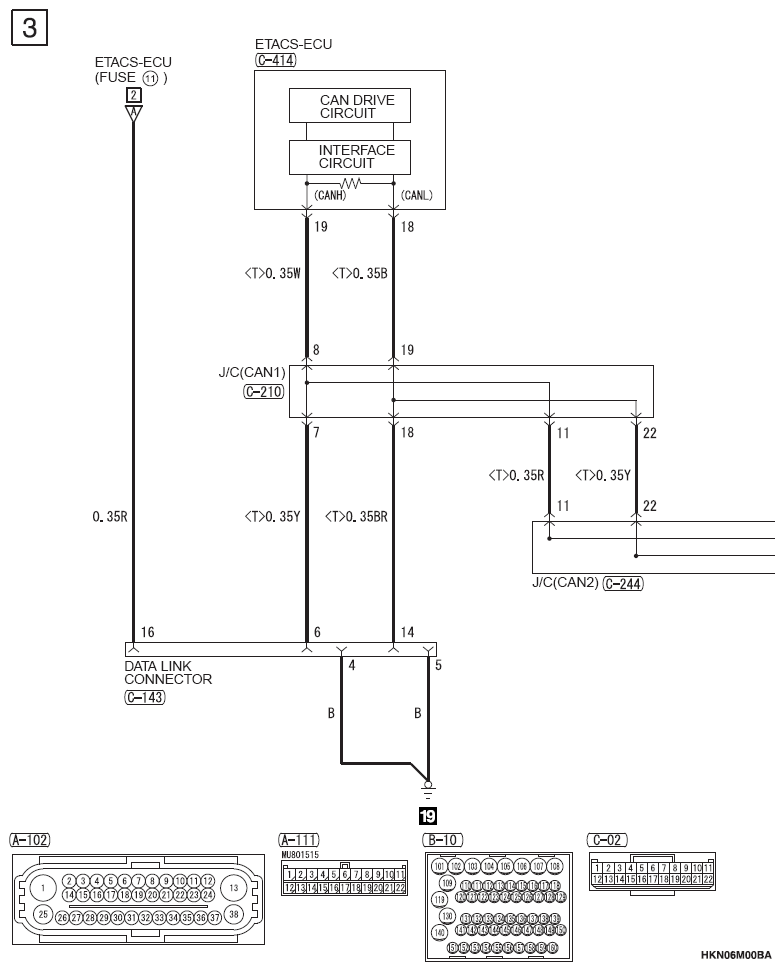

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

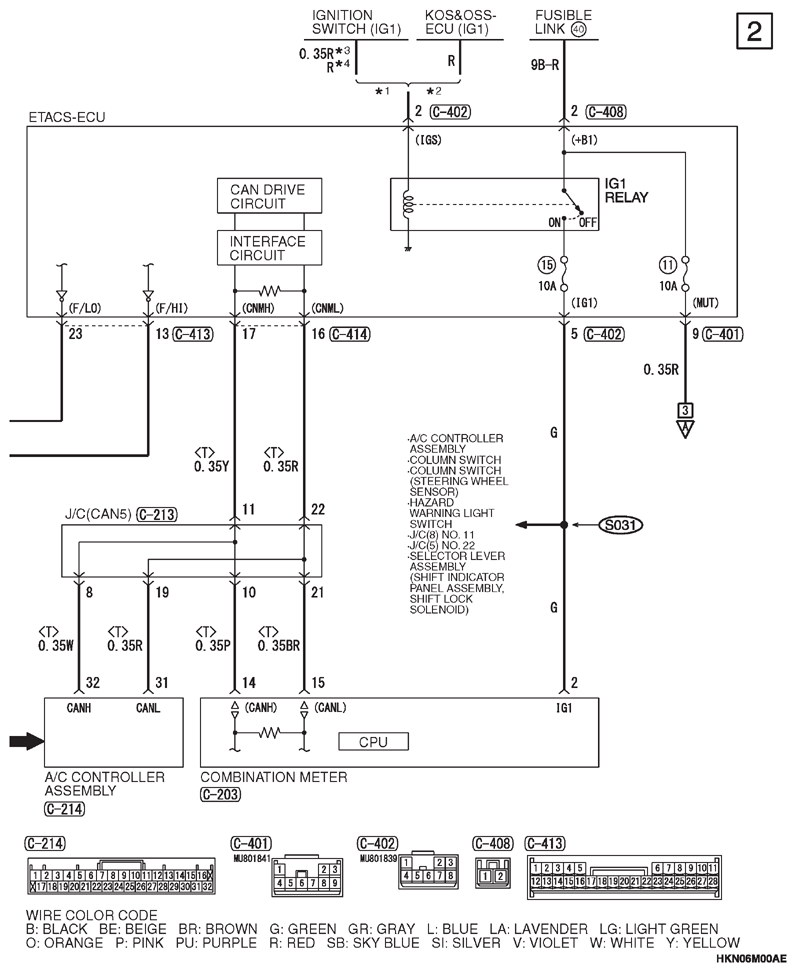

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

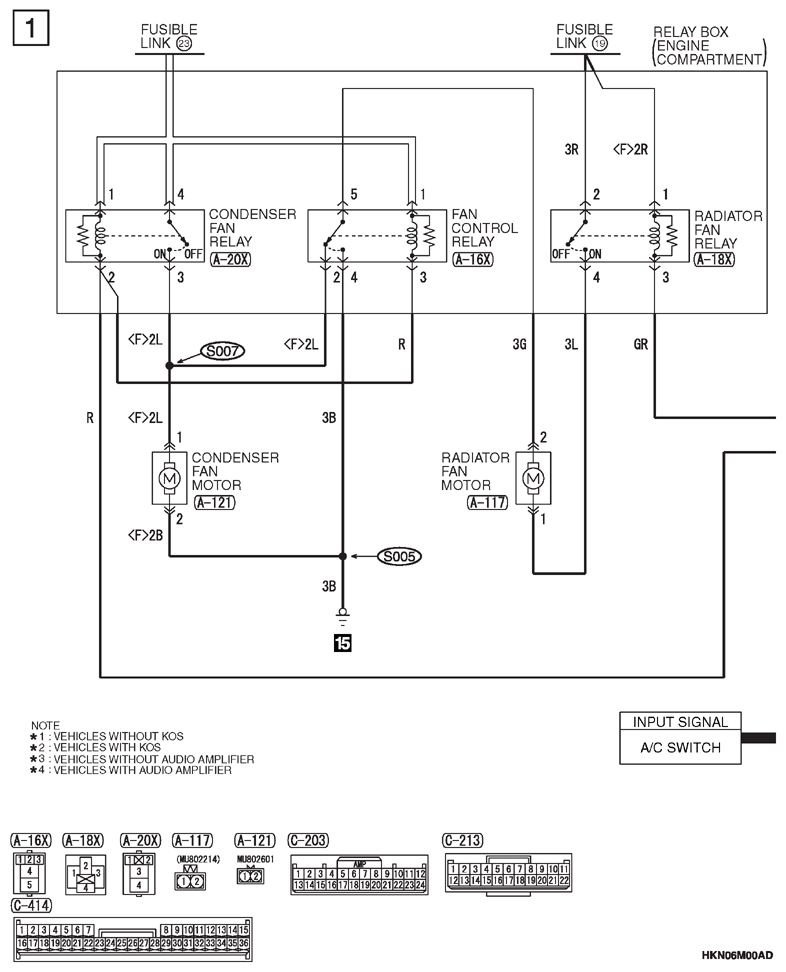

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

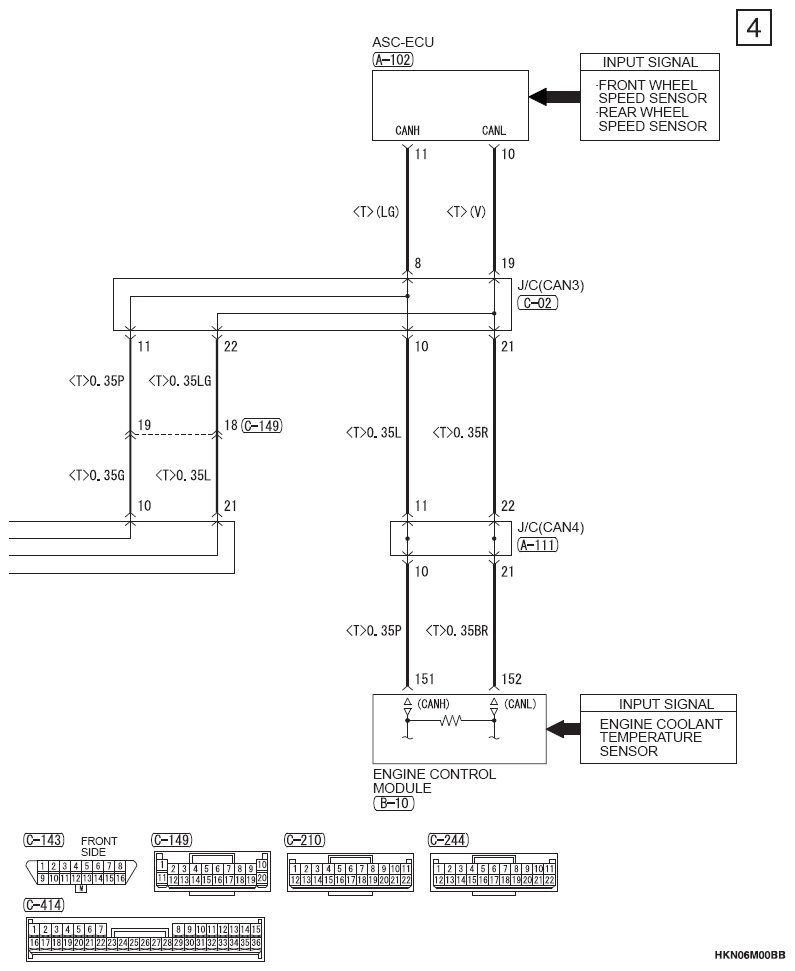

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
