Removal And Installation: Notes

Post-installation operation  Transmission range switch and control cable adjustment check (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT  .) Selector lever operation check (Refer to SELECTOR LEVER ASSEMBLY CONTINUITY CHECK  .)

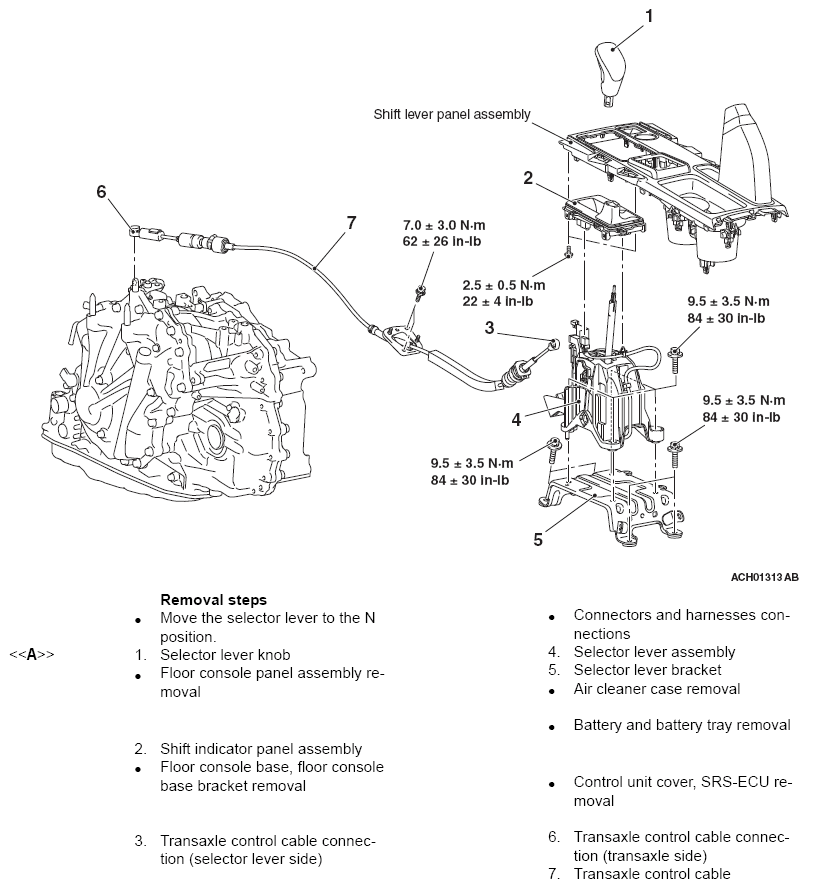

Fig 1: Removing/Installing Transaxle Control Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
