Removal And Installation

Pre-removal and Post-installation Operation

Engine Cover Removal and Installation (Refer to ENGINE COVER ASSEMBLY ).
Charge air cooler Outlet Air Pipe A Removal and Installation (Refer to CHARGE AIR COOLER ).
Vacuum pipe Removal and Installation (Refer to TURBOCHARGER ASSEMBLY ).

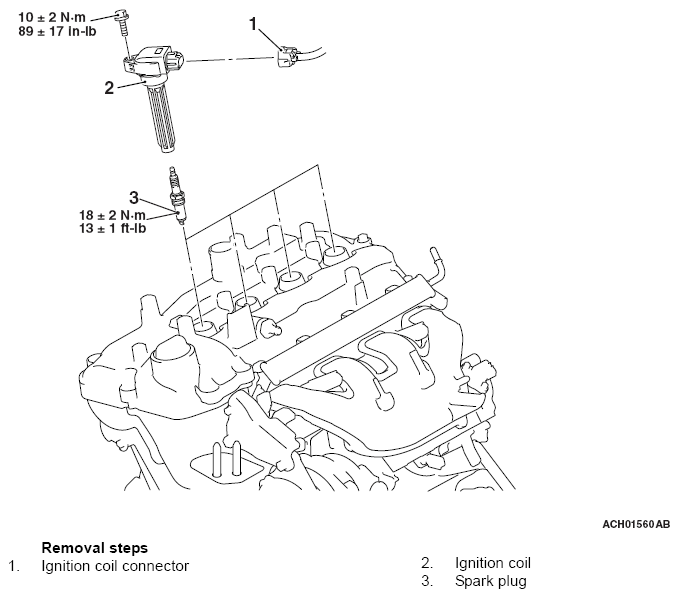

Fig 1: Removing/Installing Ignition Coil Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
