Fusible Link And Fuse: Fuse

Name	Symbol	Name	Symbol

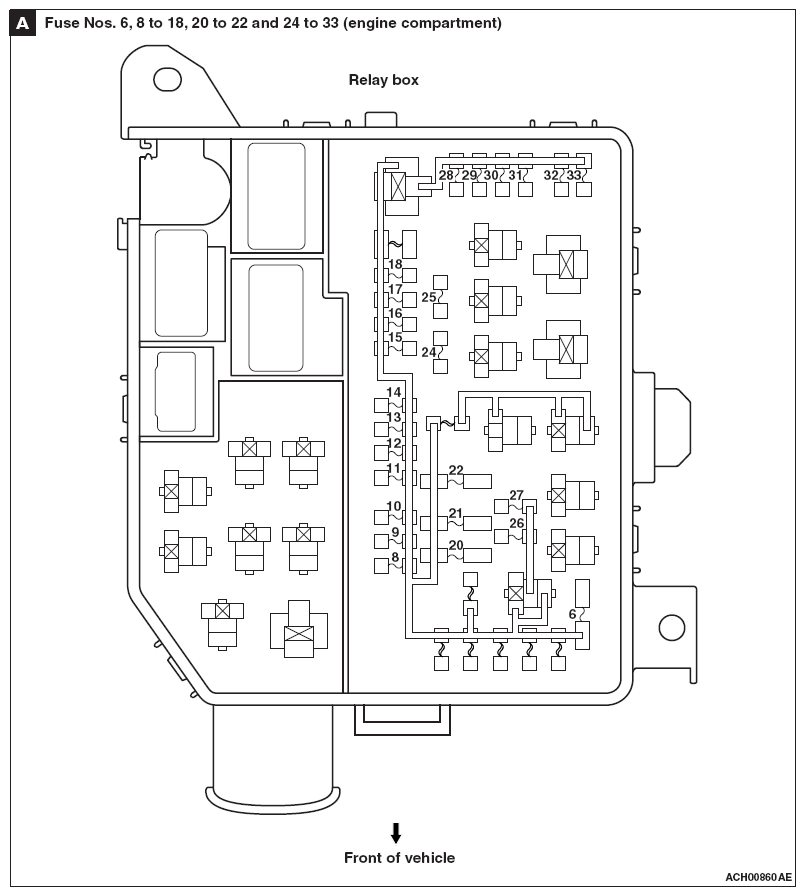

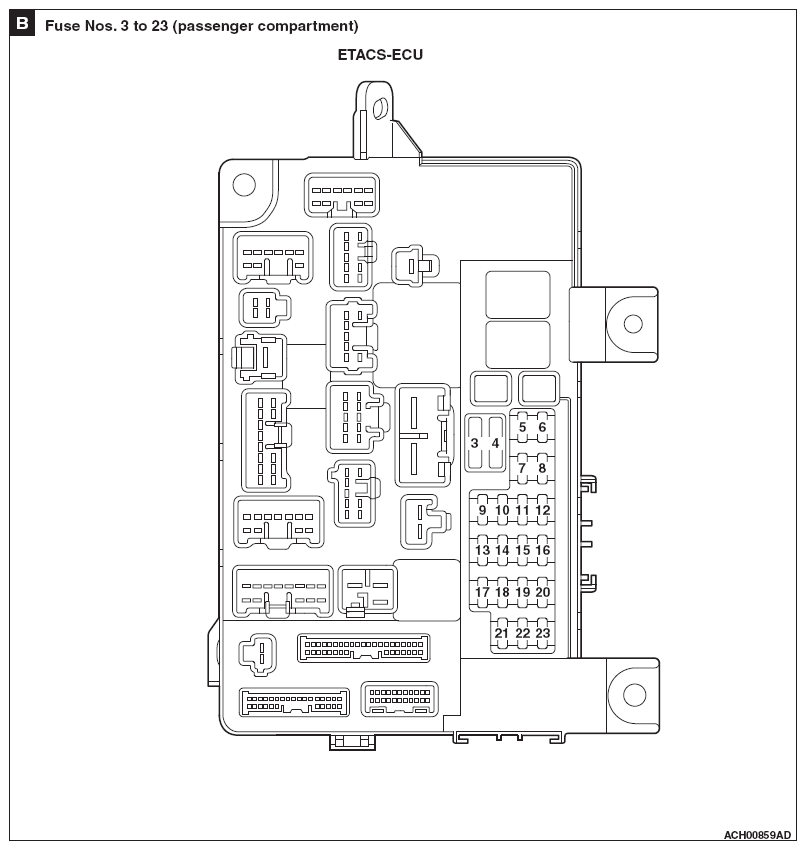

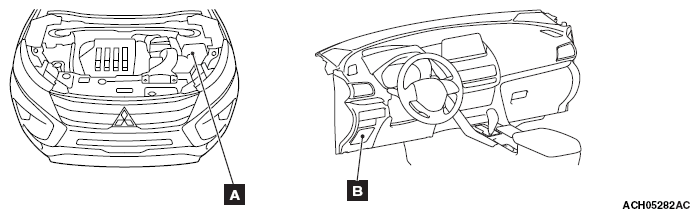

Fuse Nos. 3 to 23 (passenger compartment)	B	Fuse Nos. 6, 8 to 18, 20 to 22 and 24 to 33 (engine compartment)	A

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
