Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Instrument Lower Panel
›
Removal And Installation
Removal And Installation

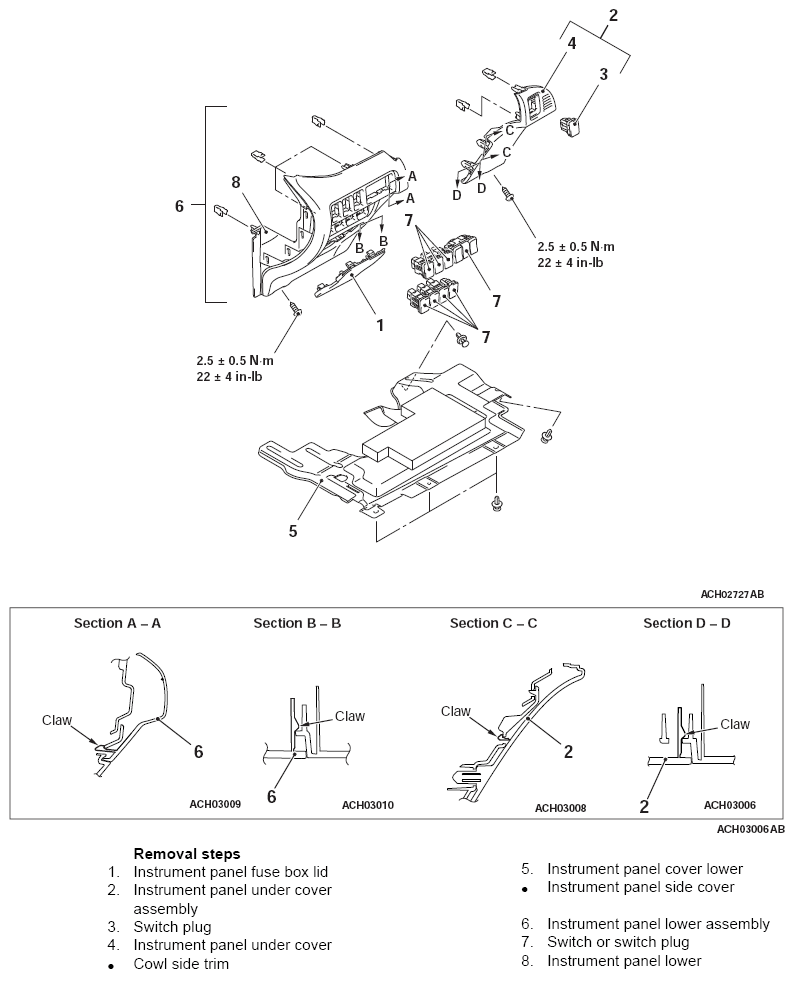

Fig 1: Removing/Installing Instrument Lower Panel Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
