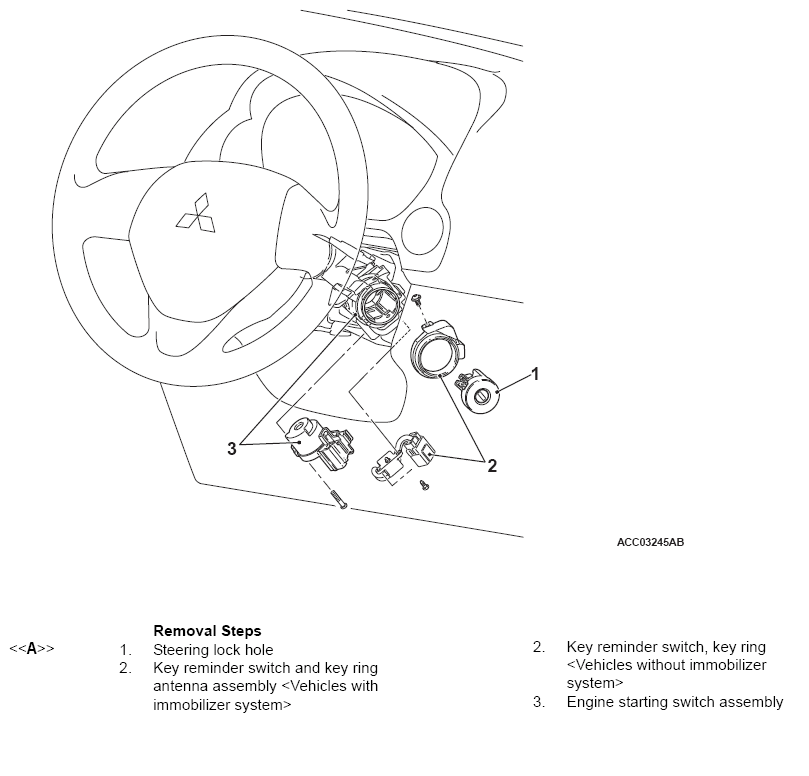

Removal And Installation: Notes

Pre-removal operation  Removal of Steering wheel assembly (Refer to STEERING WHEEL .) Removal of Steering column lower cover and steering column upper cover (Refer to STEERING COLUMN SHAFT ASSEMBLY .) Removal of Column switch body (Refer to REMOVAL AND INSTALLATION .) Removal of Instrument panel cover lower (Refer to INSTRUMENT LOWER PANEL .)

Post-installation operation  Installation of Instrument panel cover lower (Refer to INSTRUMENT LOWER PANEL .) Removal of Column switch body (Refer to REMOVAL AND INSTALLATION .) Installation of Steering column lower cover and steering column upper cover (Refer to STEERING COLUMN SHAFT ASSEMBLY .) Removal of Steering wheel assembly (Refer to STEERING WHEEL .)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
