Removal And Installation: Notes

Pre-removal Operation  Engine Room Under Cover Front Removal (Refer to UNDER COVER ).

Post-installation Operation  Engine Room Under Cover Front Installation (Refer to UNDER COVER ).

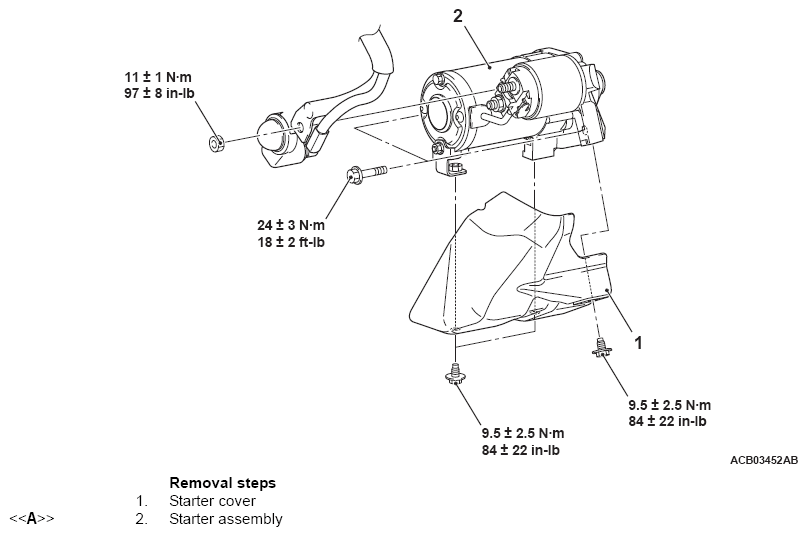

Fig 1: Removing/Installing Starter Motor Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
