Removal And Installation: Notes

Pre-removal operation

Under Cover Front Removal (Refer to UNDER COVER ).
Transmission Oil Draining (Refer to TRANSMISSION OIL REPLACEMENT ).
Starter Motor Assembly Removal (Refer to STARTER MOTOR ASSEMBLY ).
Drive Shaft Removal (Refer to DRIVE SHAFT ASSEMBLY .)
Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Battery and Battery Tray Removal (Refer to BATTERY ).

Post-installation operation

Clutch Pedal Check And Adjustment (Refer to GENERAL DESCRIPTION ).
Battery and Battery Tray Installation (Refer to BATTERY ).
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Drive Shaft Installation (Refer to DRIVE SHAFT ASSEMBLY .)
Starter Motor Assembly Installation (Refer to STARTER MOTOR ASSEMBLY ).
Transmission Oil Refilling (Refer to TRANSMISSION OIL REPLACEMENT ).
Under Cover Front Installation (Refer to UNDER COVER ).

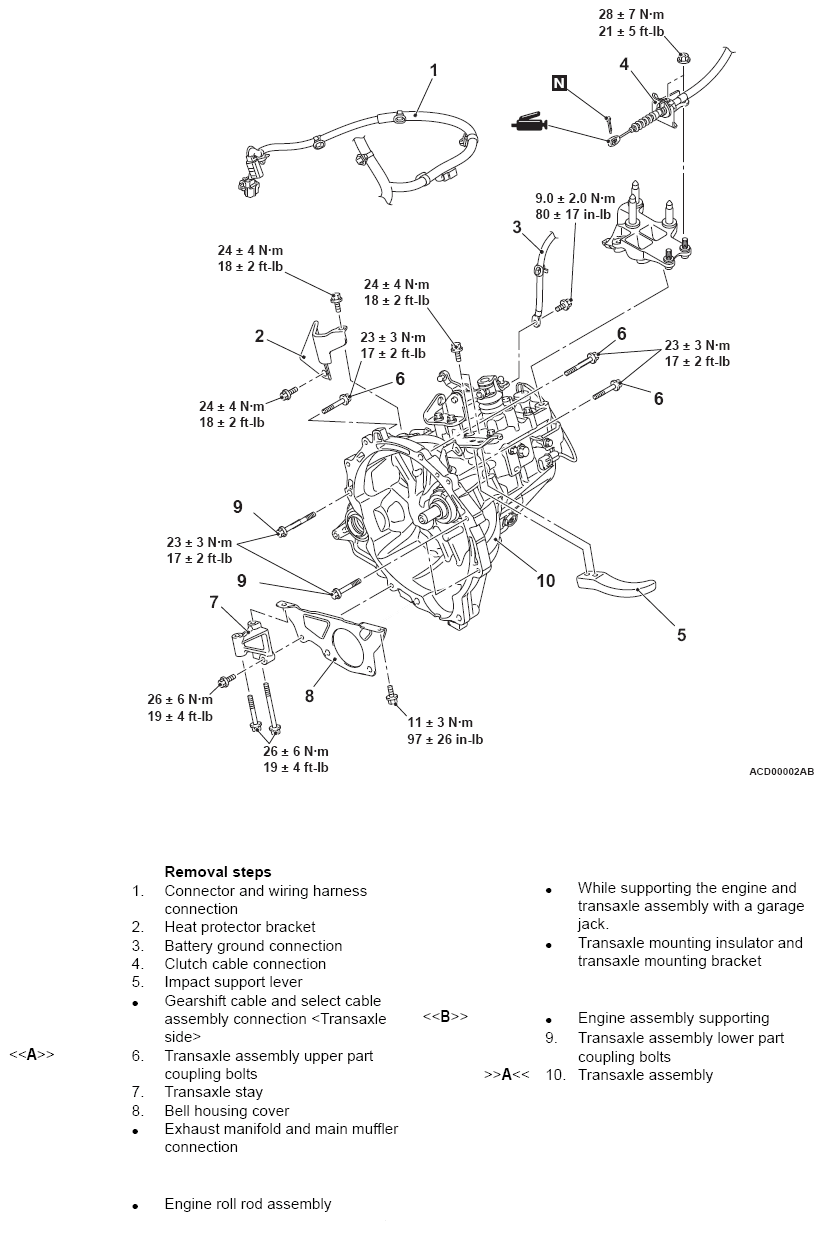

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification

G13239624

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991928: Engine Hanger
- Slide Bracket (HI)
- MB991932: Foot (standard)
- MB991929: Joint (50)
MB991895: Engine Hanger
MB992906: Engine Hanger Attachment
