Removal And Installation: Notes

Pre-removal Operation  Post-installation Operation

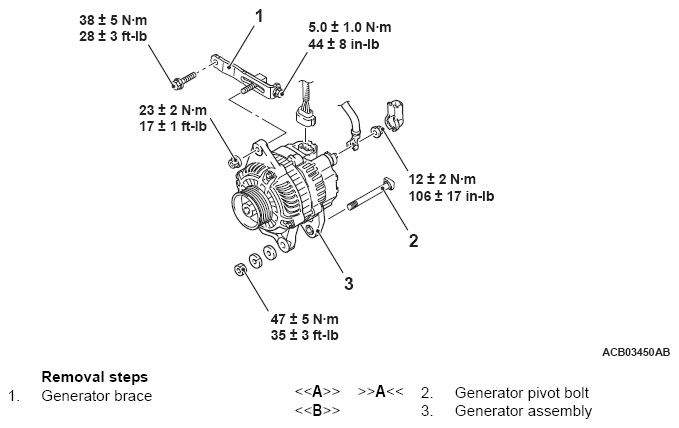

Fig 1: Removing/Installing Generator Assembly Components Location With Torque Specification
G13239525Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
