Removal And Installation: Notes

CAUTION:

• When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
• Do not reuse the manifold absolute pressure sensor that has been dropped.

Pre-removal Operation  Throttle Body Assembly Removal (Refer to THROTTLE BODY ASSEMBLY ). Fuel Rail and Fuel Injector Assembly Removal (Refer to INJECTOR ).	Post-installation Operation  Fuel Rail and Fuel Injector Assembly Installation (Refer to INJECTOR ). Throttle Body Assembly Installation (Refer to THROTTLE BODY ASSEMBLY ).

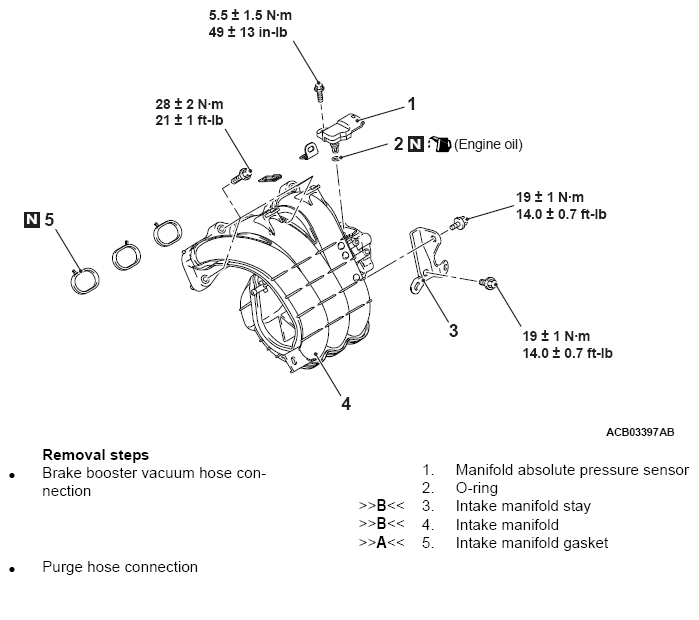

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
