Removal And Installation: Notes
Pre-removal and post-installation operation
Engine Room Under Cover Front Removal and Installation (Refer to
UNDER COVER
).
Oil Filter Removal and Installation (Refer to
OIL FILTER REPLACEMENT
).

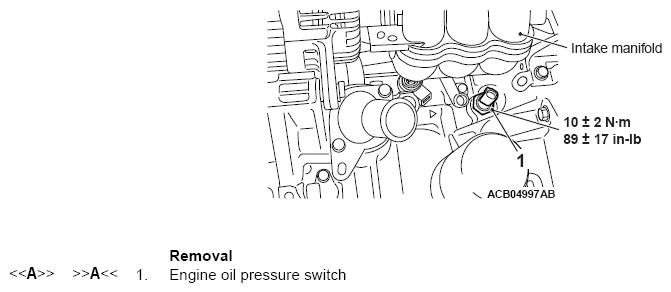

Fig 1: Removing/Installing Engine Oil Pressure Switch Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB992118: Oil Pressure Switch Wrench
